Impreza GT F4-2.5L Turbo (2009)
Cross-Member: Service and Repair
Front Suspension
Removal
Front Crossmember Support Plate
REMOVAL
1) Lift up the vehicle.
2) Remove the front under cover.
3) Remove the bolt and remove front crossmember support plate.
^

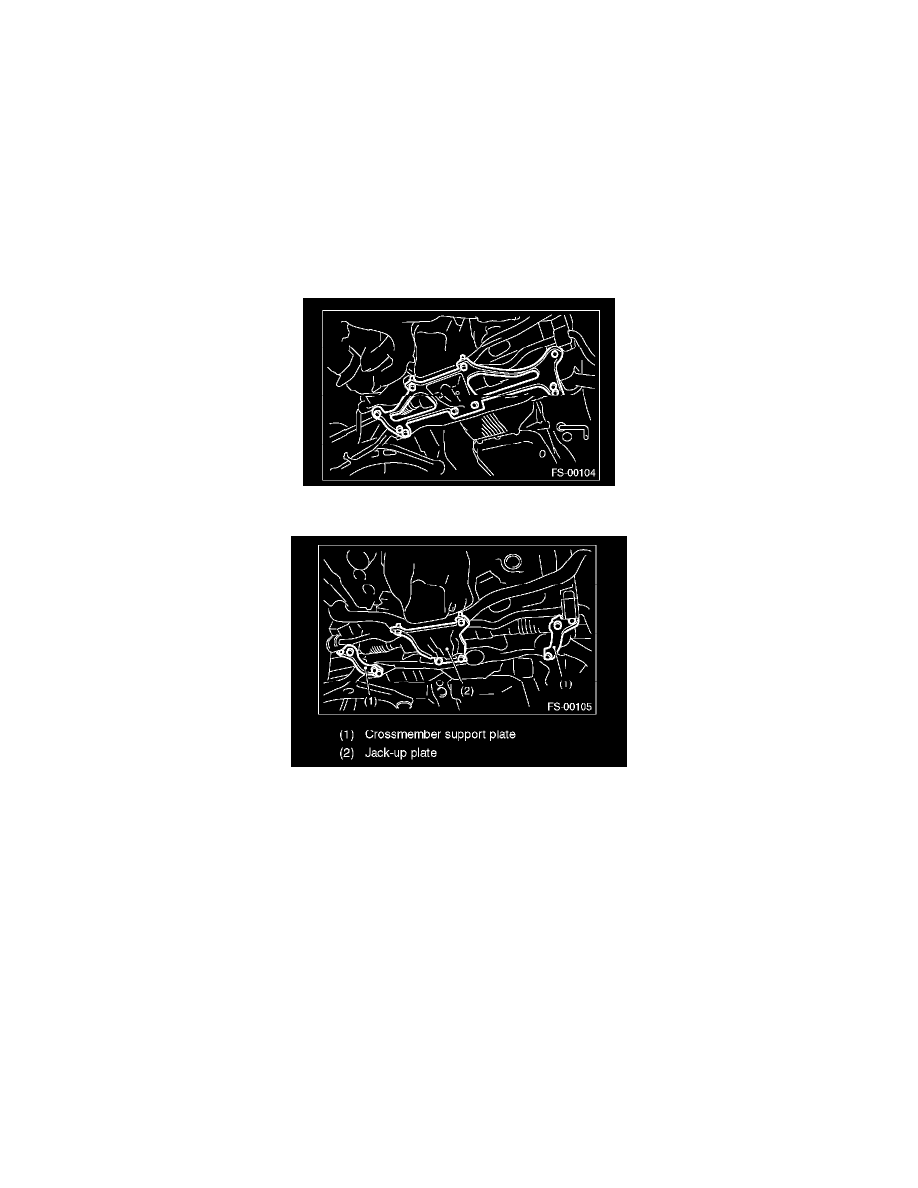

Large type (Turbo type)
^
Small type
Installation
INSTALLATION
Install in the reverse order of removal.
NOTE:
Tighten the small type crossmember support plate together with stabilizer bracket. After installing the stabilizer bracket to the crossmember,
tighten the crossmember support plate together.
Tightening torque:
Crossmember support plate:
60 N-m (6.1 kgf-m, 44.3 ft-lb)
Crossmember support plate (Tightened together with the stabilizer bracket):
25 N-m (2.5 kgf-m, 18.4 ft-lb)
Jack-up plate:
60 N-m (6.1 kgf-m, 44.3 ft-lb)
