Impreza WRX F4-2.5L DOHC Turbo (2006)
Knock Sensor: Service and Repair
Knock Sensor

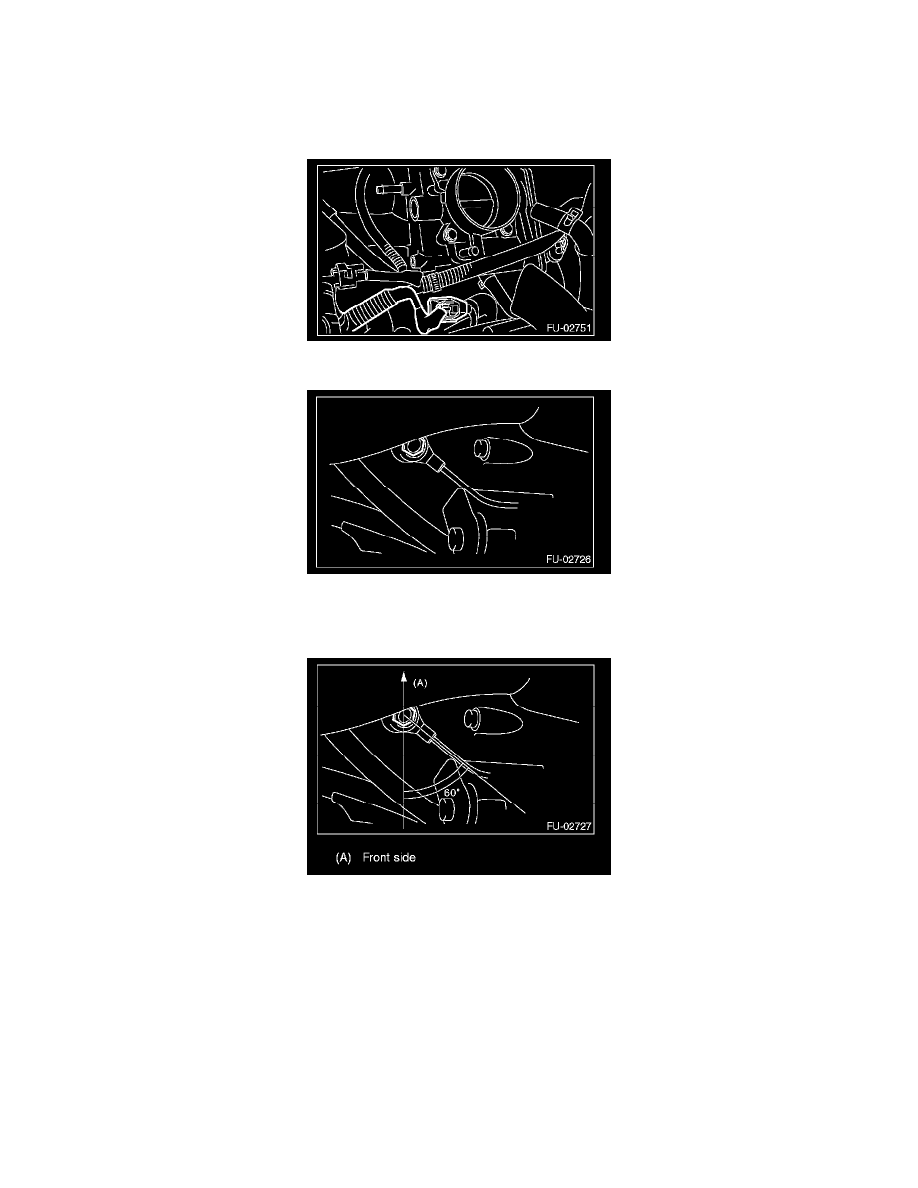

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the intercooler.
3. Disconnect the knock sensor connector.
4. Remove the knock sensor from the cylinder block.
INSTALLATION
1. Install the knock sensor to the cylinder block.
Tightening torque: 24 N.m (2.4 kgf-m, 17.4 ft-lb)
NOTE: Extraction area of the knock sensor cord must be positioned at a 60 degrees angle relative to the engine rear.
