Impreza WRX F4-2.5L DOHC Turbo (2006)
Shift Interlock Solenoid: Service and Repair
AT Shift Lock Solenoid and "P" Range Switch

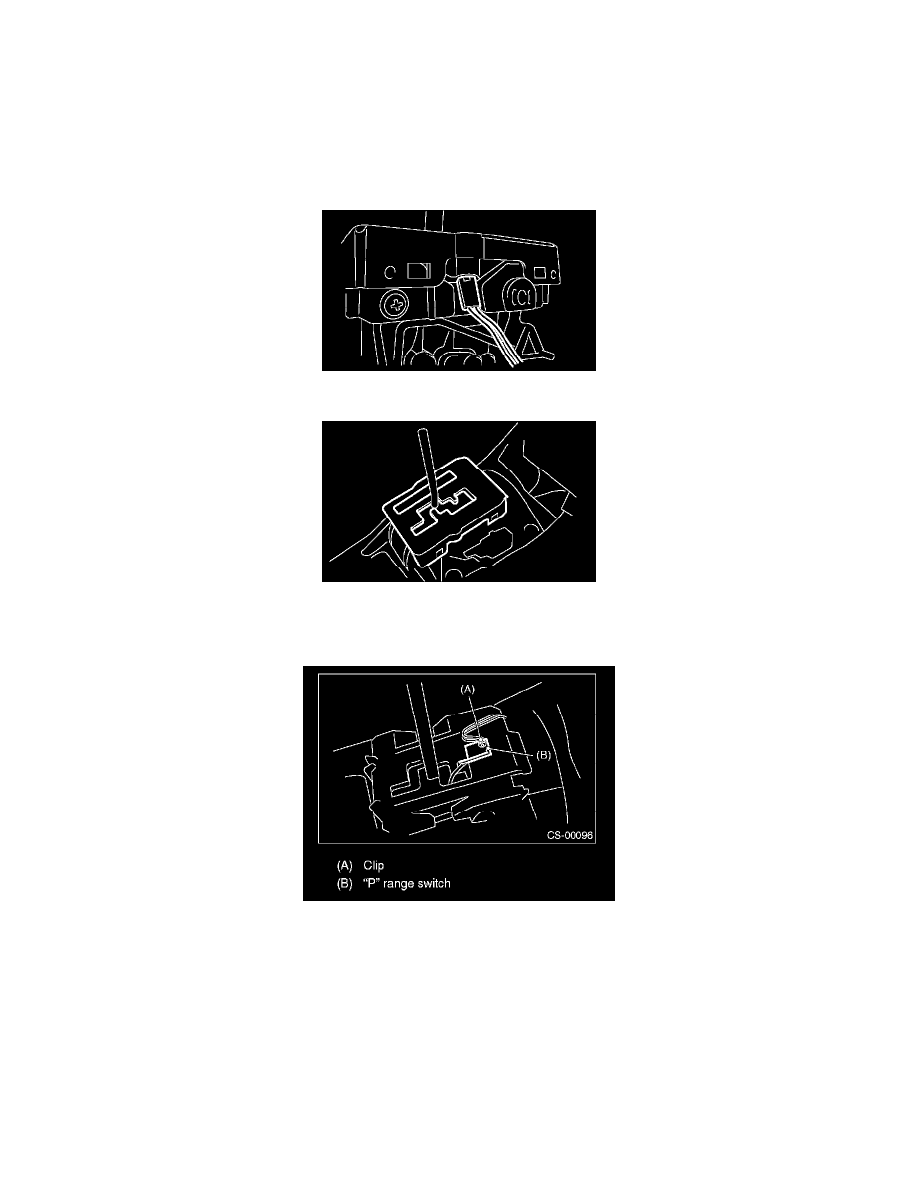

REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console box.
3) Disconnect the connector.
4) Remove the grip.
5) Remove the indicator bulb from indicator cover.
6) Remove the indicator cover.
7) Remove the blind.
8) Remove the cushion.
9) Remove the clip, and then remove the "P" range switch.
10) Remove the cover.
