Legacy GT Wagon AWD F4-2.5L DOHC (1997)

Page 1
background image

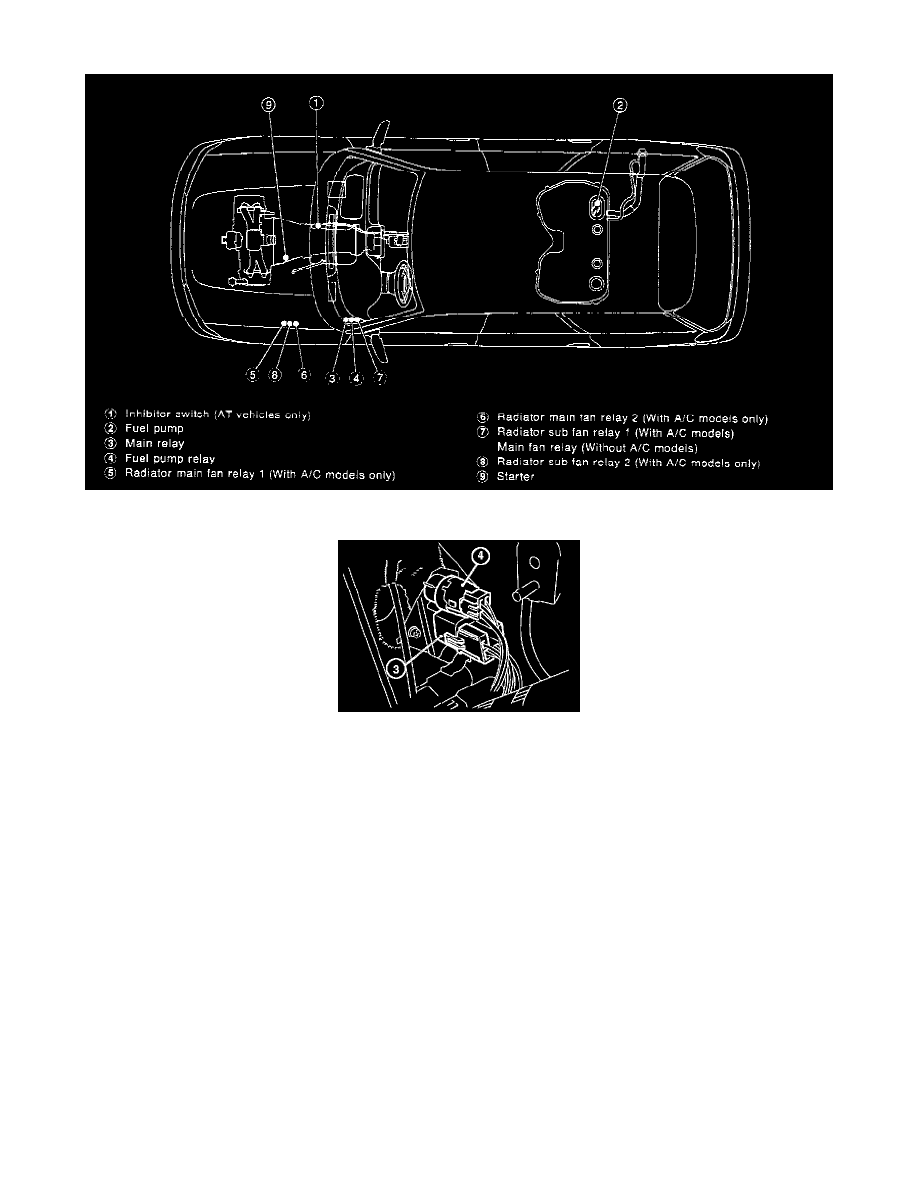

Main Relay (Computer/Fuel System): Locations

Location in Vehicle

3.Main Relay

4.Fuel Pump Relay
