Legacy GT Wagon AWD F4-2.5L DOHC (1997)
Tightening torque:
13 ± 3 Nm (1.3 ± 0.3 kg-m, 9.4 ± 2.2 ft-Ib)

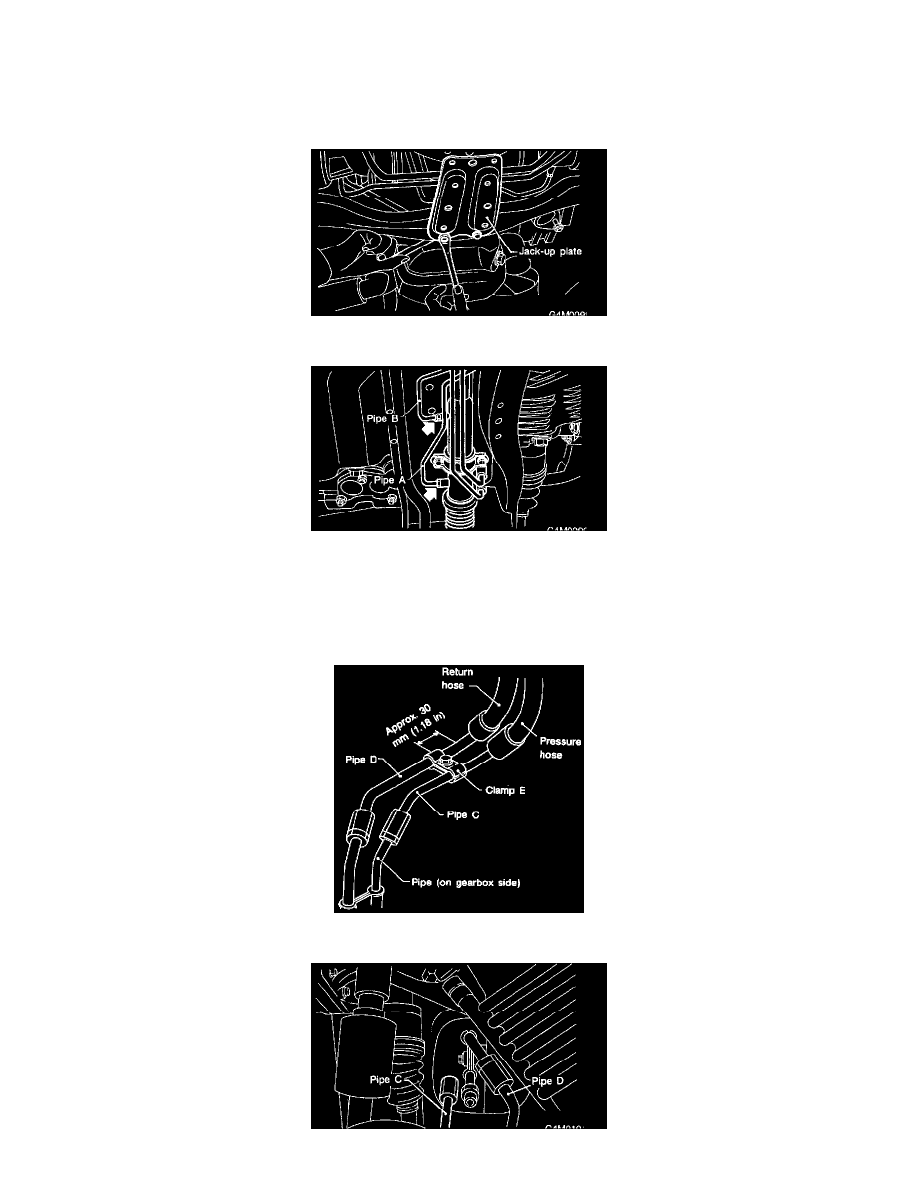

5) Temporarily connect pipes C and D to control valve of gearbox.
6) Temporarily install clamp F on pipes C and D.
CAUTION: Ensure that the letter "8" side of clamp E is on the pipe C side as shown in the figure.
7) Tighten clamp F firmly.
Tightening torque:
7.4 ± 2.0 Nm (0.75 ± 0.20 kg-m, 54 ± 1.4 ft-Ib)
8) Tighten joint nut.
Tightening torque:
15 ± 5 Nm (1.5 ± 0.5 kg-m, 10.0 ± 3.6 ft-Ib)
9) Connect pipes A and B to four pipe joints of gearbox.
Connect upper pipe A first, and lower pipe B second.
Tightening torque:
13 ± 3 Nm (1.3 ± 0.3 kg-m, 9.4 ± 2.2 ft-Ib)
10) Install jack-up plate.
11) Connect battery negative terminal.
12) Feed the specified fluid and discharge air.
