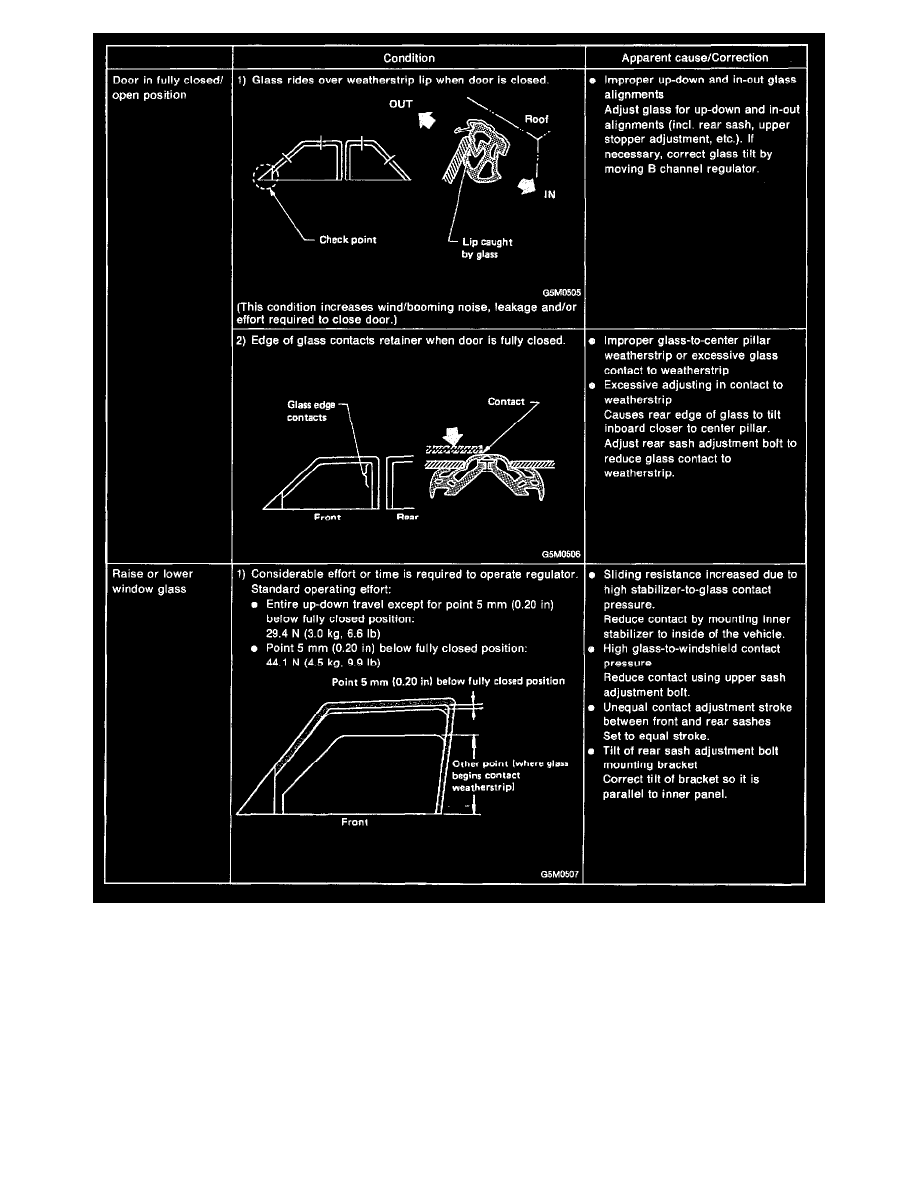

Door Glass (Part 2)

Body and Frame
Doors, Hood and Trunk / Doors / Front Door
Front Door Window Glass / System Information / Diagrams
Page 5272
