Legacy Outback Limited AWD Compressor Clutch Relay Locations

Page 1
background image

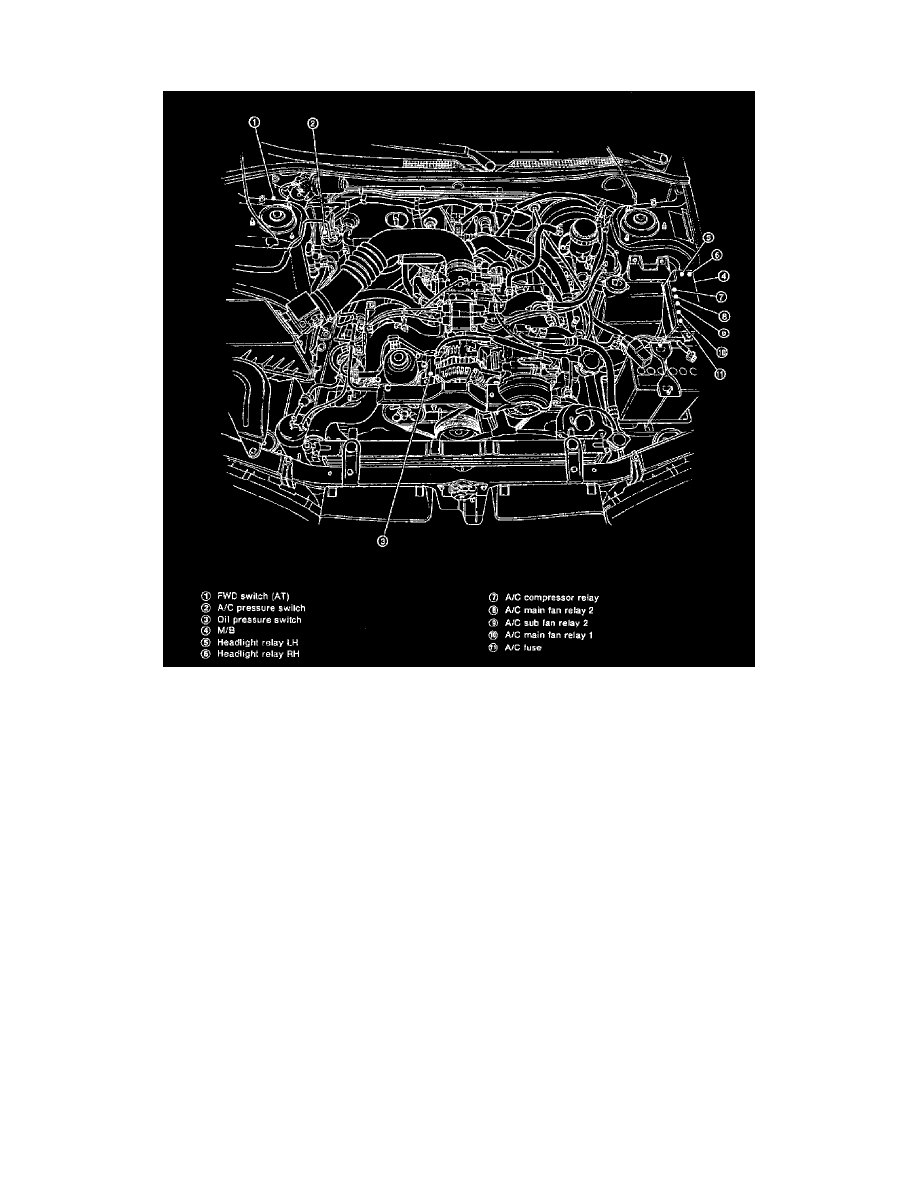

Compressor Clutch Relay: Locations

LH side of Engine compartment in main fuse/relay box
