Legacy Outback Limited AWD F4-2.5L DOHC (1998)
EGR Electronic Vacuum Regulator Solenoid: Service and Repair
EXHAUST GAS RECIRCULATION (EGR) SOLENOID VALVE
REMOVAL AND INSTALLATION
1. Remove bolt which installs the Exhaust Gas Recirculation (EGR) solenoid valve on to the intake manifold.
2. Disconnect hoses and connector from the EGR solenoid valve.

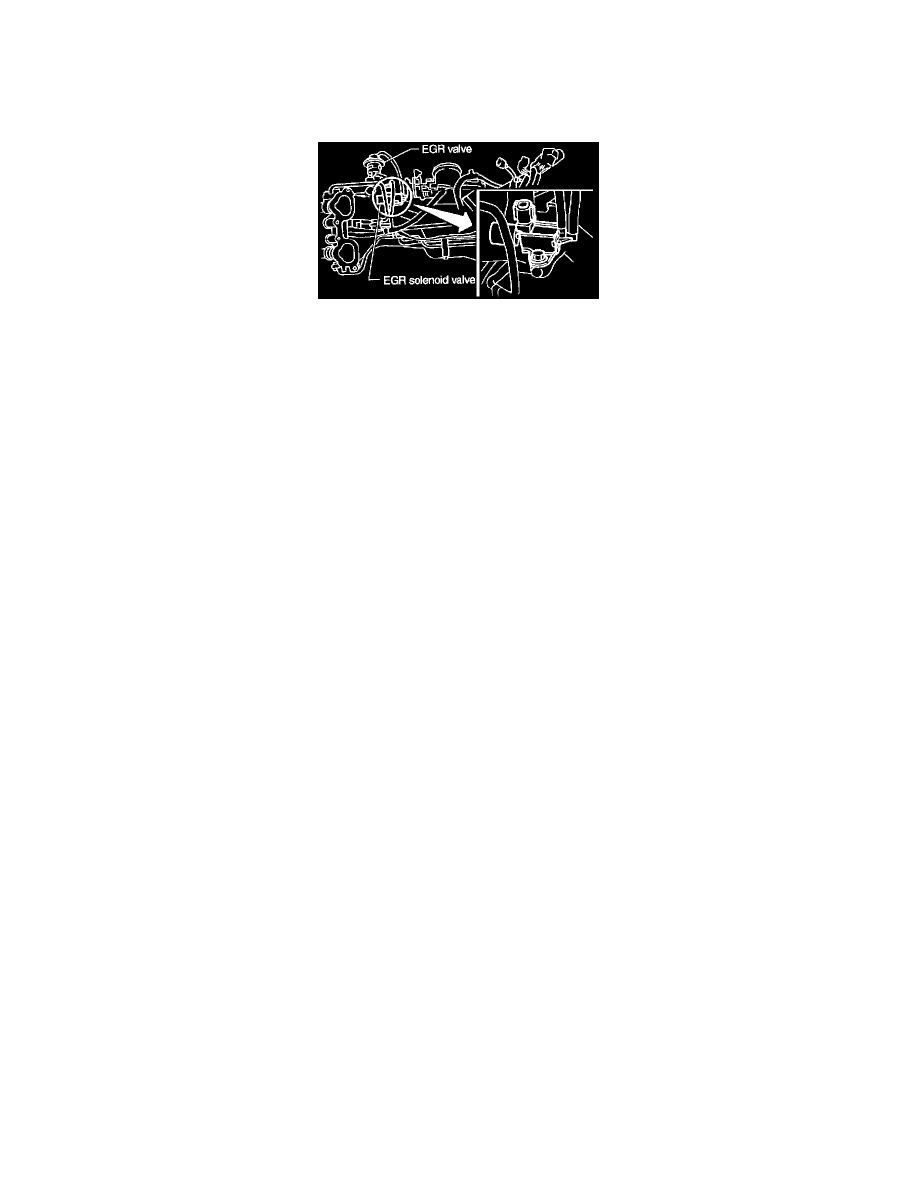

NOTE: This figure shows the rear side of the intake manifold.
3. Installation is in the reverse order of removal.
Tightening Torque: .............................................................................................................................................. 19.0 ± 5.0 N.m (13.7 ± 3.6 ft-lb).
