Legacy Outback Limited AWD F4-2.5L DOHC (1998)

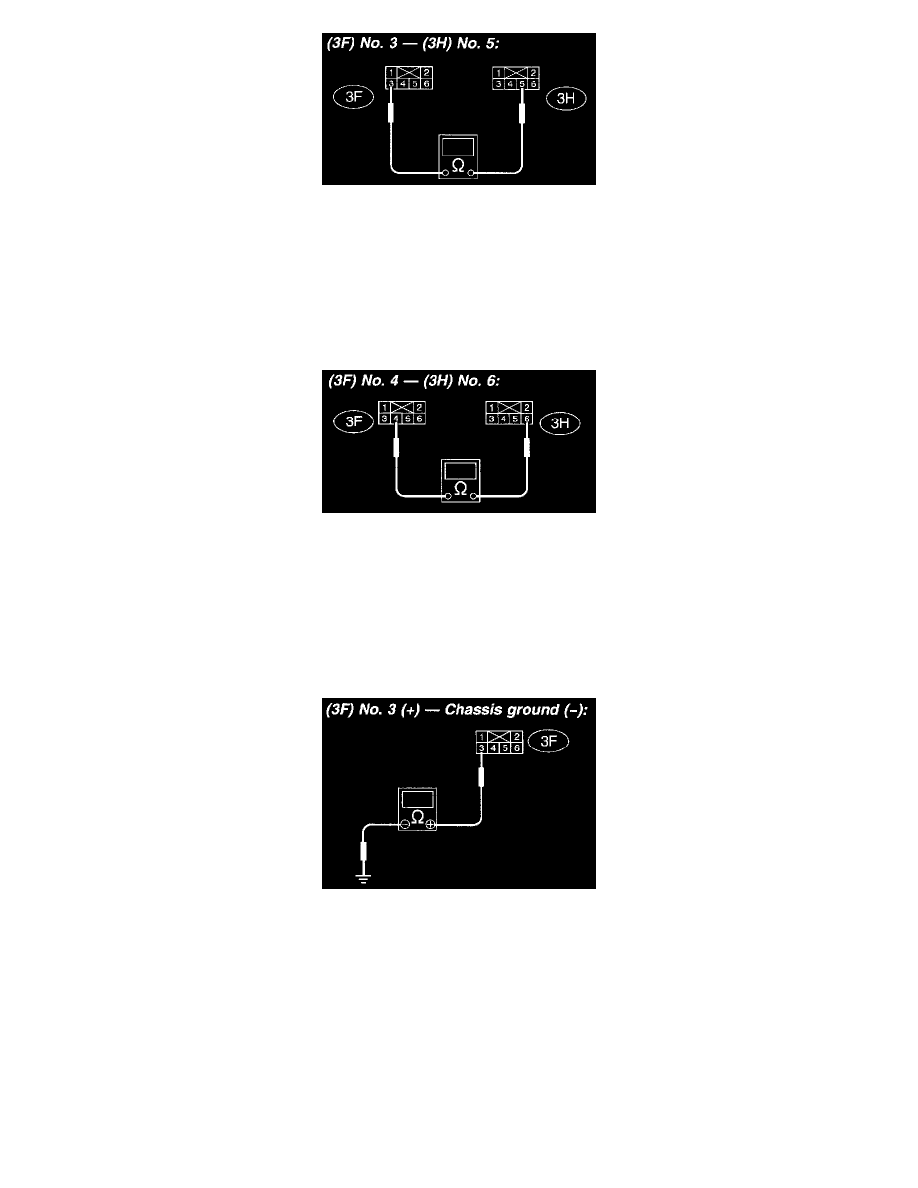

3. Measure resistance between test harness F connector (3F) terminal and test harness H connector (3H) terminal.
CHECK: Is the resistance less than 10 Ohms?
YES:
Go to step 5B12.
NO:
Replace front sub sensor harness (RH).
5B12: FRONT SUB SENSOR HARNESS (RH) INSPECTION
Measure resistance between test harness F connector (3F) terminal and test harness H connector (3H) terminal.
CHECK: Is the resistance less than 10 Ohms?
YES:
Go to step 5B13.
NO:
Replace front sub sensor harness (RH).
5B13: FRONT SUB SENSOR HARNESS (RH) INSPECTION
Measure resistance across test harness F connector (3F) terminal and chassis ground.
CHECK: Is the resistance more than 10 K Ohms?
YES:
Go to step 5B14.
NO:
Replace front sub sensor harness (RH).
5B14: FRONT SUB SENSOR HARNESS (RH) INSPECTION
