Page 1

background image

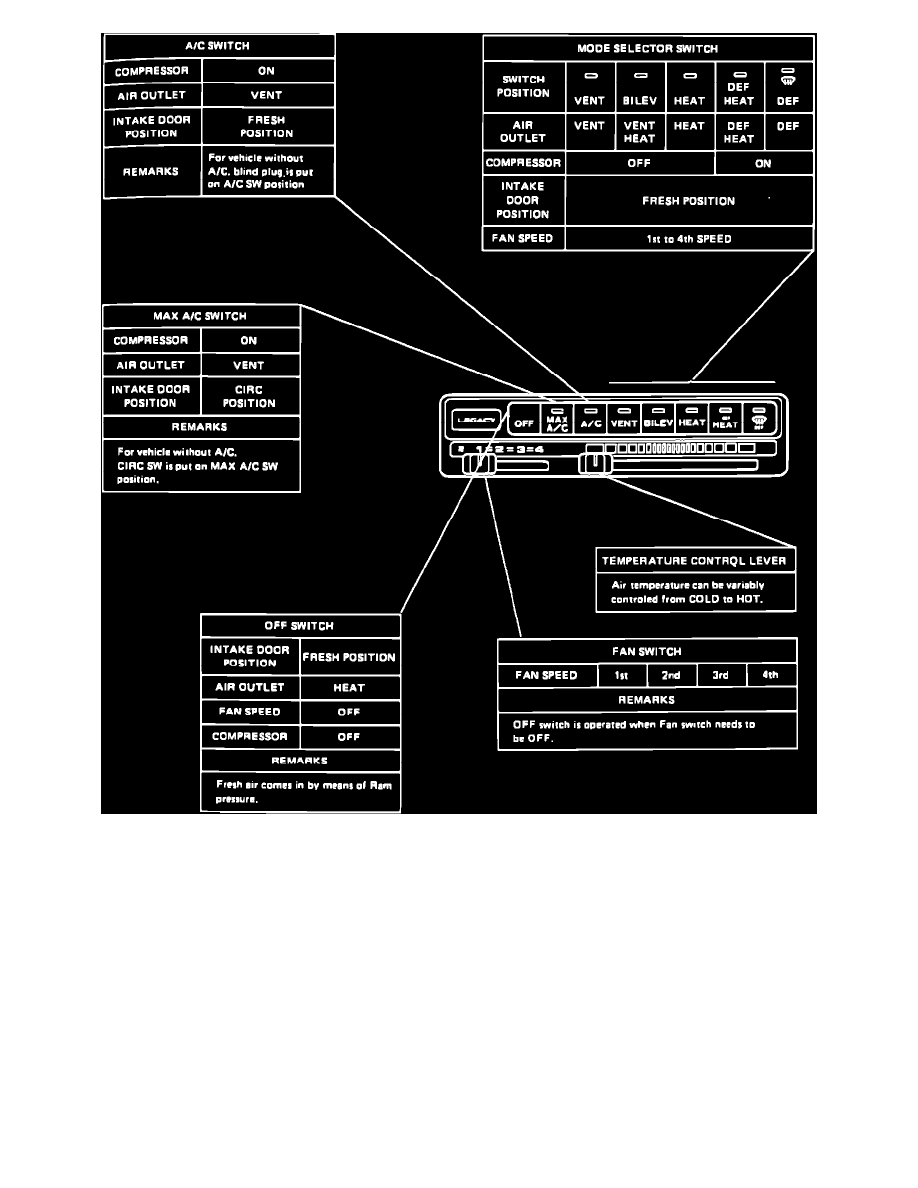

Switch Functions (Manual A/C)

Heating and Air Conditioning
Control Assembly, HVAC / Description and Operation / Automatic Climate Control Panel
Page 4661
