Component Tests and General Diagnostics|Page 2595 > < Component Tests and General Diagnostics|Page 2593

Legacy Sedan 2WD F4-2.2L SOHC (1990)

Page 1
background image

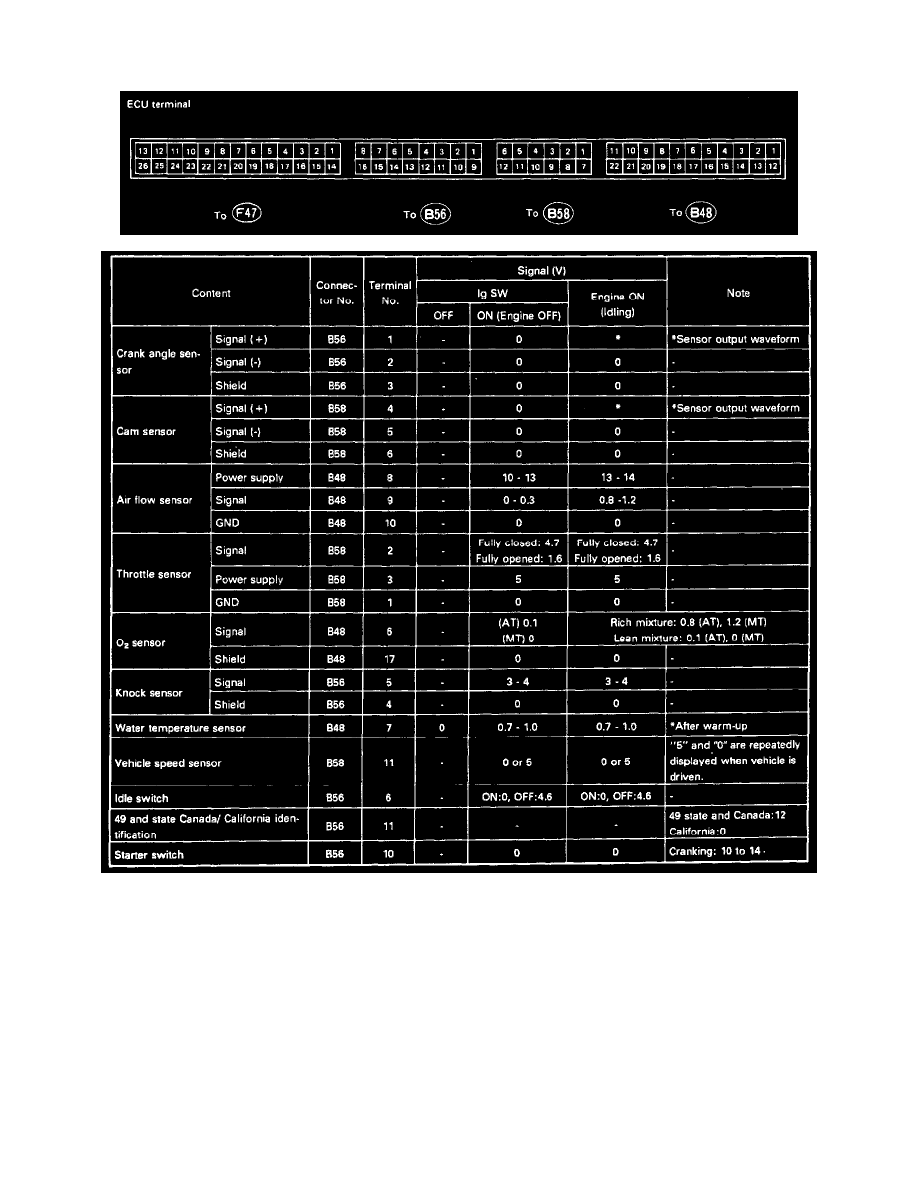

Engine Control Module: Pinout Values and Diagnostic Parameters

Control Unit I/O Signal

Component Tests and General Diagnostics|Page 2595 > < Component Tests and General Diagnostics|Page 2593
