Legacy Sedan 2WD F4-2.2L SOHC (1990)
Relays and Modules
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Engine Control Module / Component Information
Testing and Inspection / Component Tests and General Diagnostics
Page 658
Page 1

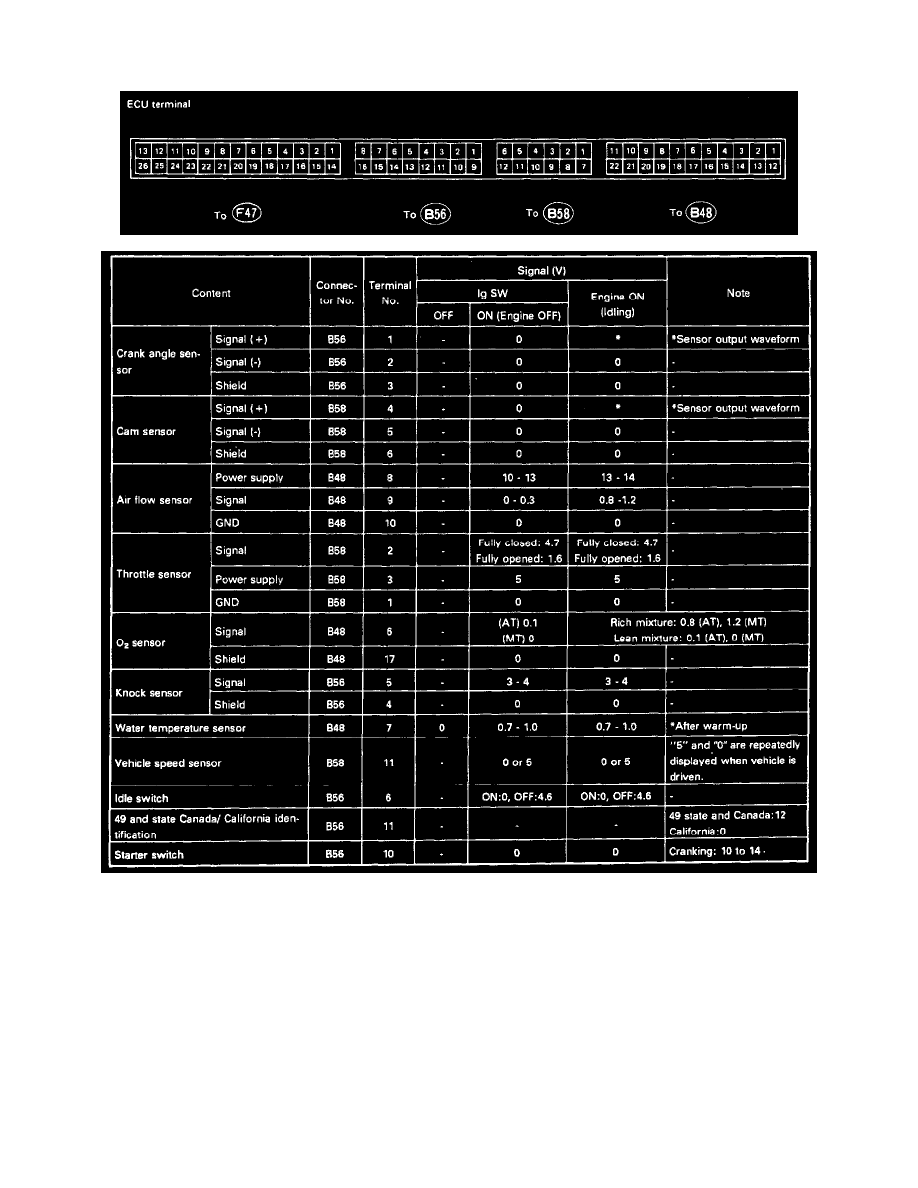

Engine Control Module: Pinout Values and Diagnostic Parameters
Control Unit I/O Signal
