Brake Pedal Assy: Diagrams

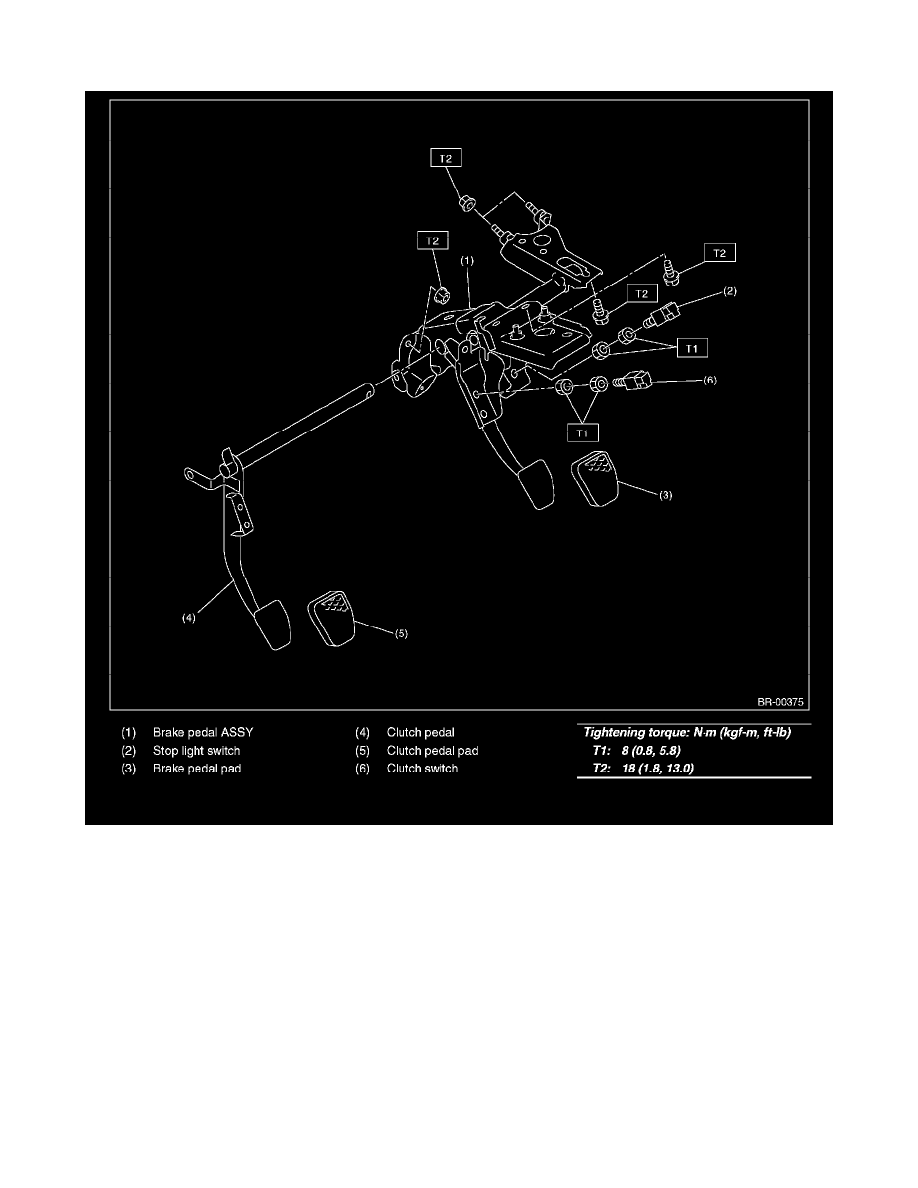

BRAKE PEDAL

^

MT model

Brakes and Traction Control
Brake Pedal Assy
Component Information
Diagrams
