Wiper Relay|Testing and Inspection|Page 5528 > < Windshield|Service and Repair|Page 5522

Outback F6-3.0L (2003)

  • Wiper and Washer Systems
  • Relays and Modules - Wiper and Washer Systems
  • Wiper Relay
  • Component Information
  • Testing and Inspection

Page 1
background image

Wiper Relay: Testing and Inspection

Wiper Control Relay

INSPECTION

WAGON

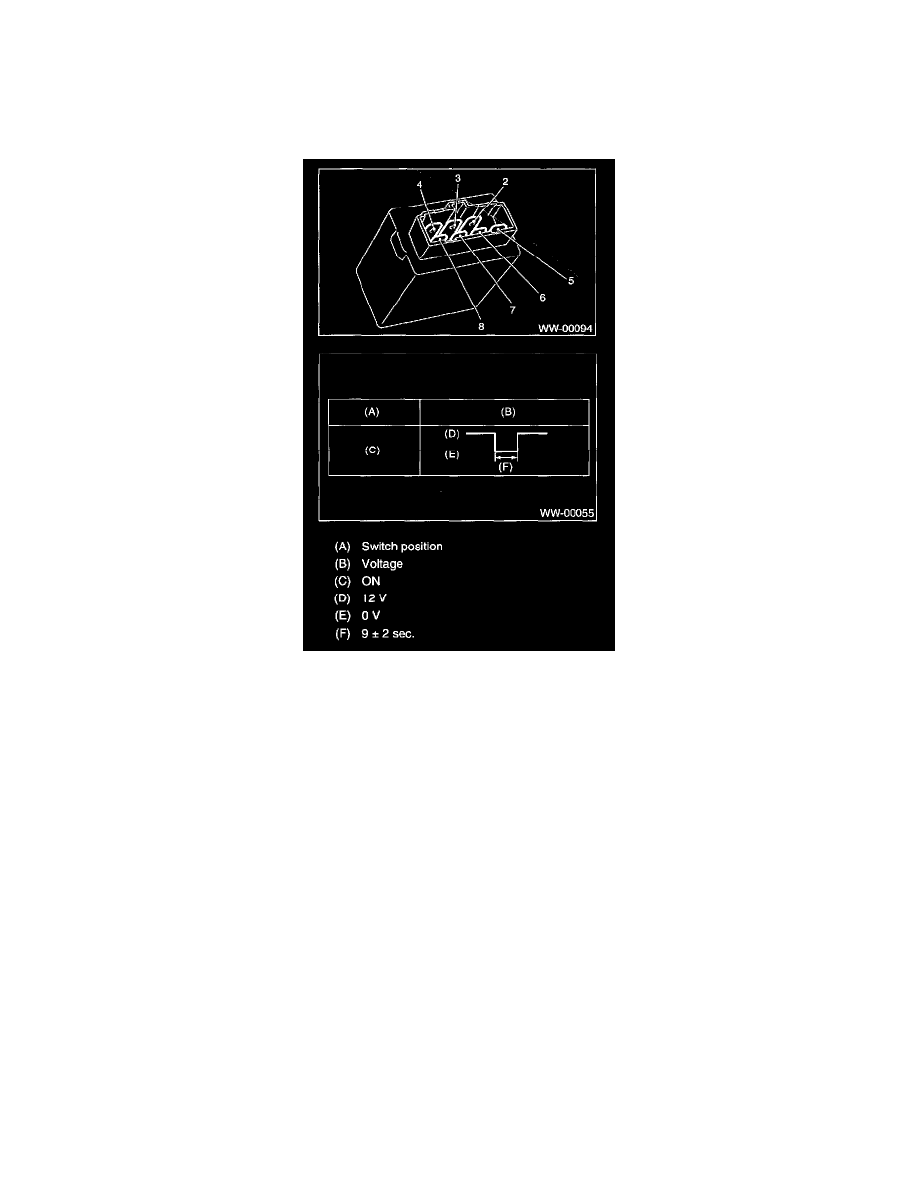

Apply battery voltage to the rear terminals 8 and 2, and then inspect the voltage of 6 and 2. (Measure the voltage from after the second time the wiper
stops.)

If operation is not as specified, replace the switch.
