Aerio L4-2.3L (2006)
Windshield Washer Pump: Service and Repair
Washer Tank and Washer Pump Removal and Installation
Reference: Wipers and Washers Components
Removal
1. Disconnect negative (-) cable at battery.
2. Remove front fender lining (LH).
3. Remove front bumper.

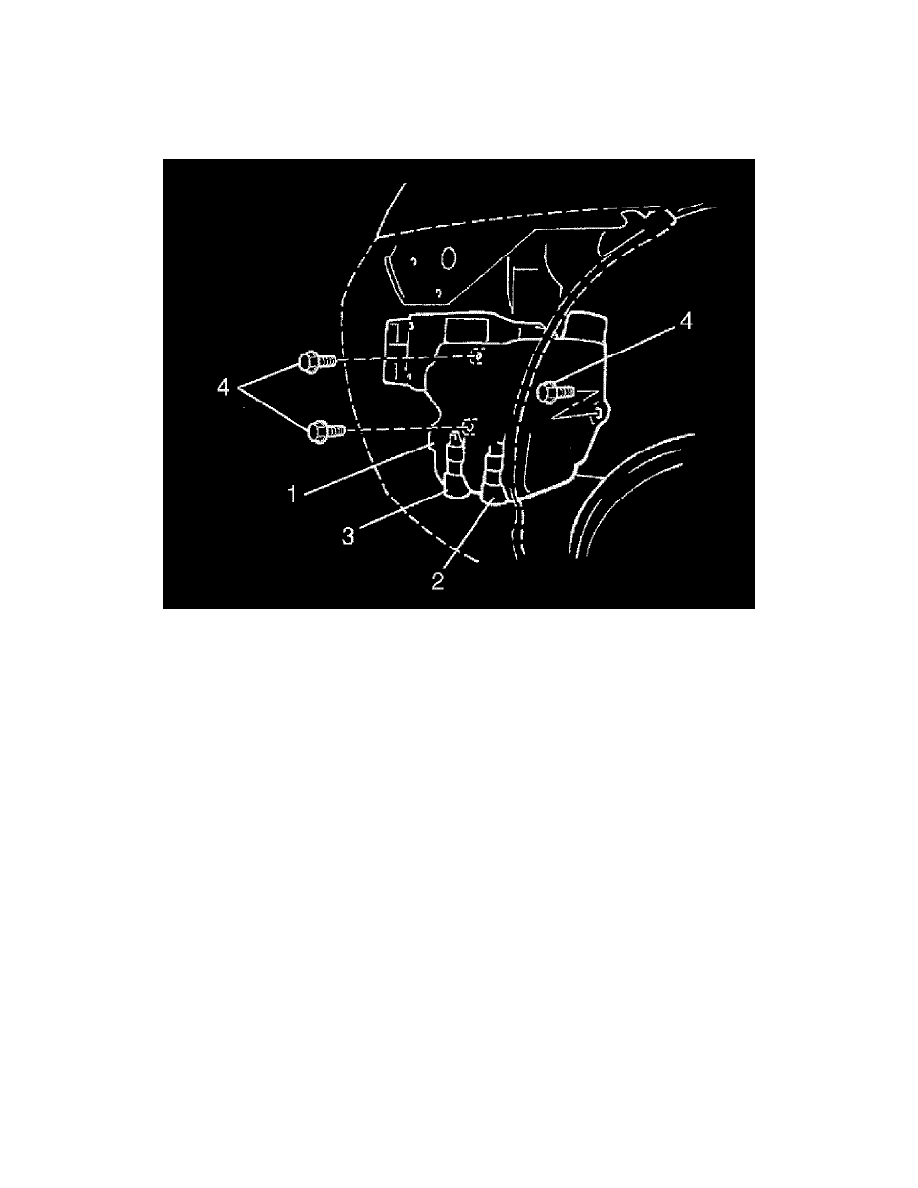

4. Remove washer tank attaching bolts (4).
5. Disconnect washer pump lead wire couplers and hoses.
6. Remove washer tank (1).
7. Remove windshield washer pump (2) and rear washer pump (3) from washer tank (1).
Installation
Reference: Washer Pump Inspection
Reverse removal procedure.
