Equator 2WD L4-2.5L (2010)
Cruise Control: Description and Operation
ASCD: System Description

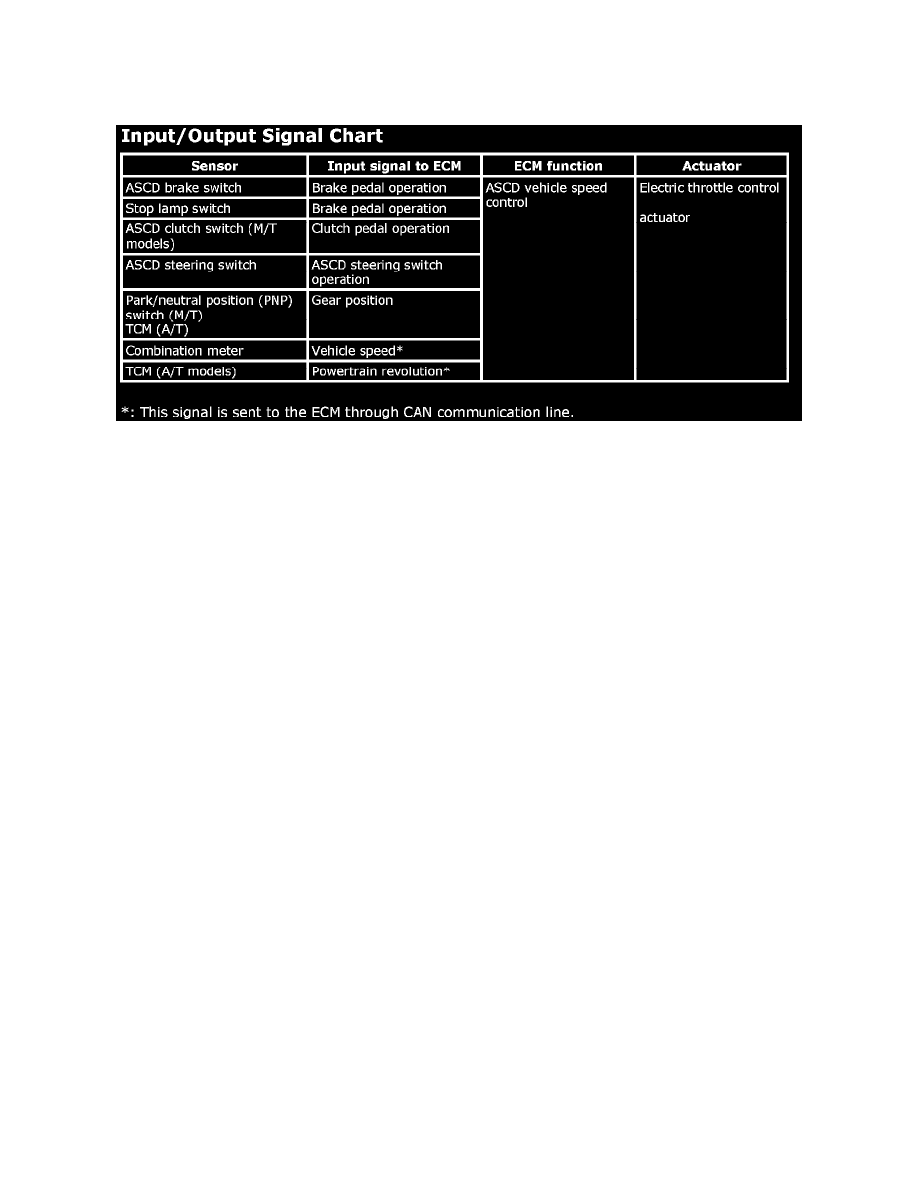

Input/Output Signal Chart
Input/Output Signal Chart
Basic ASCD System
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed without depressing accelerator pedal. Driver
can set vehicle speed in advance between approximately 35 km/h (22 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed. Operation status of ASCD is indicated by CRUISE indicator
and SET indicator in combination meter. If any malfunction occurs in the ASCD system, it automatically deactivates control.
NOTE: Always drive vehicle in a safe manner according to traffic conditions and obey all traffic laws.
Set Operation
Press ASCD MAIN switch. (The CRUISE indicator in combination meter illuminates.) When vehicle speed reaches a desired speed between
approximately 35 km/h (22 MPH) and 144 km/h (89 MPH), press SET/COAST switch. (Then SET indicator in combination meter illuminates.)
Accelerate Operation
If the RESUME/ACCELERATE switch is depressed during cruise control driving, increase the vehicle speed until the switch is released or vehicle speed
reaches maximum speed controlled by the system.
And then ASCD will maintain the new set speed.
Cancel Operation
When any of following conditions exist, cruise operation will be canceled.
-
CANCEL switch is depressed
-
More than 2 switches on ASCD steering switch are pressed at the same time (Set speed will be cleared)
-
Brake pedal is depressed
-
Clutch pedal is depressed or gear position is changed to the neutral position (M/T models)
-
Selector lever is position is N, P or R position (A/T models)
-
Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform the driver by blinking indicator lamp.
-
Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE lamp may blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE lamp will stop blinking and the cruise operation
will be able to work by depressing SET/COAST switch or RESUME/ACCELERATE switch.
-
Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF while ASCD is activated, all of ASCD operations will be canceled and vehicle speed memory will be erased.
