Equator 2WD L4-2.5L (2010)
Vehicle Lifting: Service and Repair

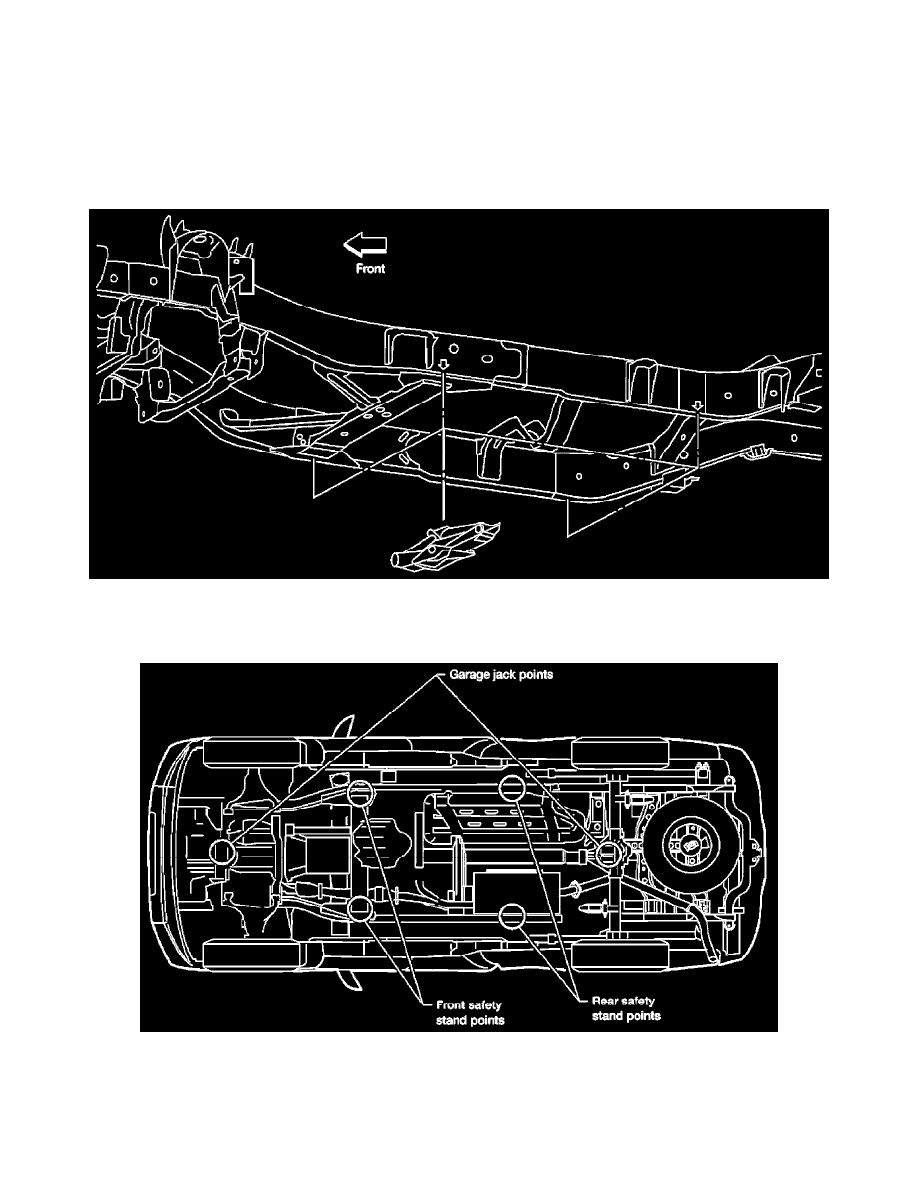

Lifting Point
Pantograph Jack
WARNING:
-
Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get
under the vehicle.
-
Place wheel chocks at both front and back of the wheels on the ground.
Garage Jack and Safety Stand
CAUTION: Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.
2-Pole Lift
WARNING:
-
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
-
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, or fuel lines.
