Forenza L4-2.0L (2004)
Transmission Mount: Service and Repair
Left Transaxle Mounting Bracket Removal and Installation
Tools Required: DW110-060 Engine Support Fixture
Removal
1. Remove the battery.

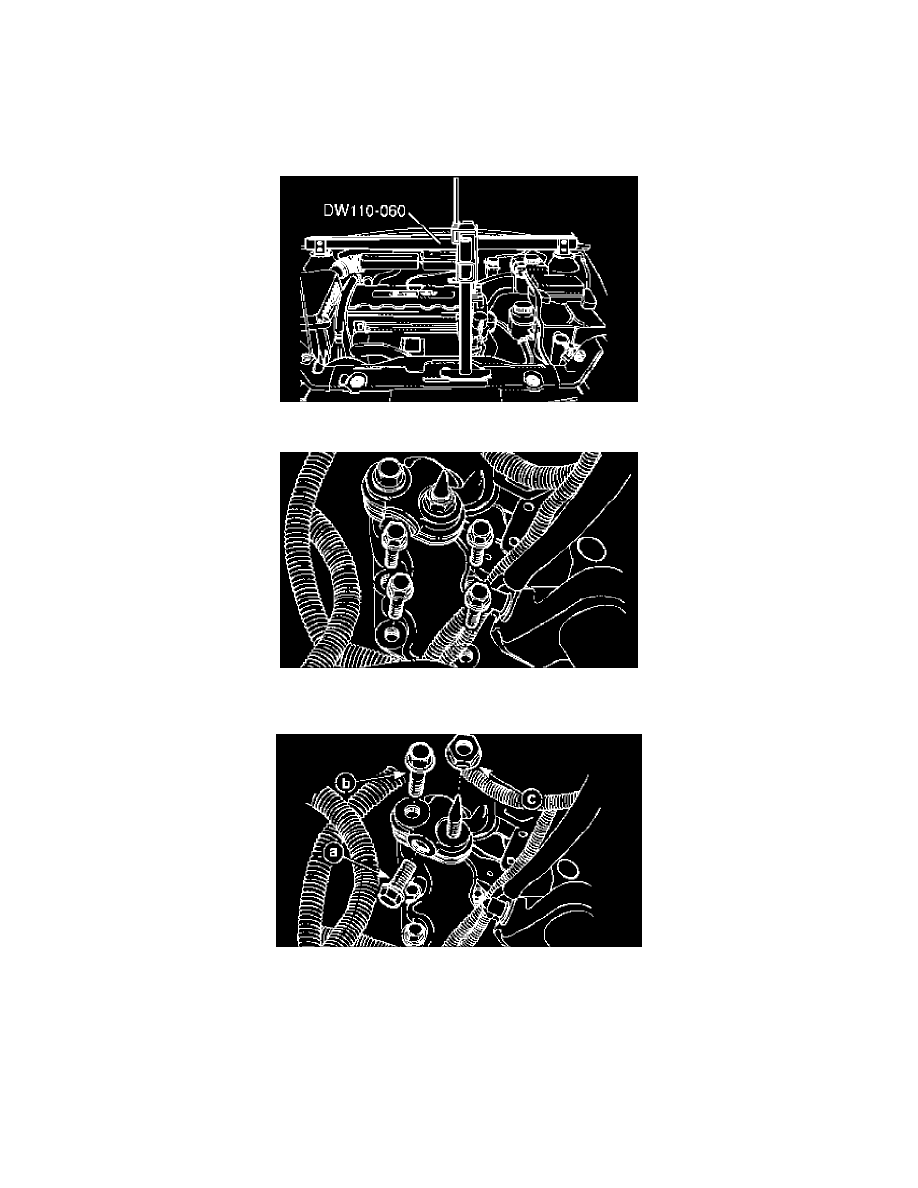

2. Install the engine support fixture DW110-060.
3. Remove the left transaxle mounting bolts.
4. Remove the left transaxle mount bracket cage bolts and nut.
5. Remove the transaxle mounting bracket.
Installation
