Grand Vitara 2WD V6-2.7L (2006)
Ignition Switch: Technical Service Bulletins
Starting - Revised Ignition Switch Terminal Layout
GRAND VITARA
Division: Automotive
Category: Technical
Section Title: Body, Cab and Accessories
TSB No. TS 35 08130
SUBJECT:
SERVICE MANUAL UPDATE: CORRECTION OF THE TERMINAL LAYOUT
OF AN IGNITION SWITCH ILLUSTRATION.
MODEL(S):
GRAND VITARA (JB627)
YEAR:
2006
CONDITION:
When referencing the service manual for the terminal layout of the ignition switch described in the "Ignition Switch Inspection" in section 9C, the pins
are labeled incorrectly.
CAUSE:
Mis-print in the service information illustration.
CORRECTION:

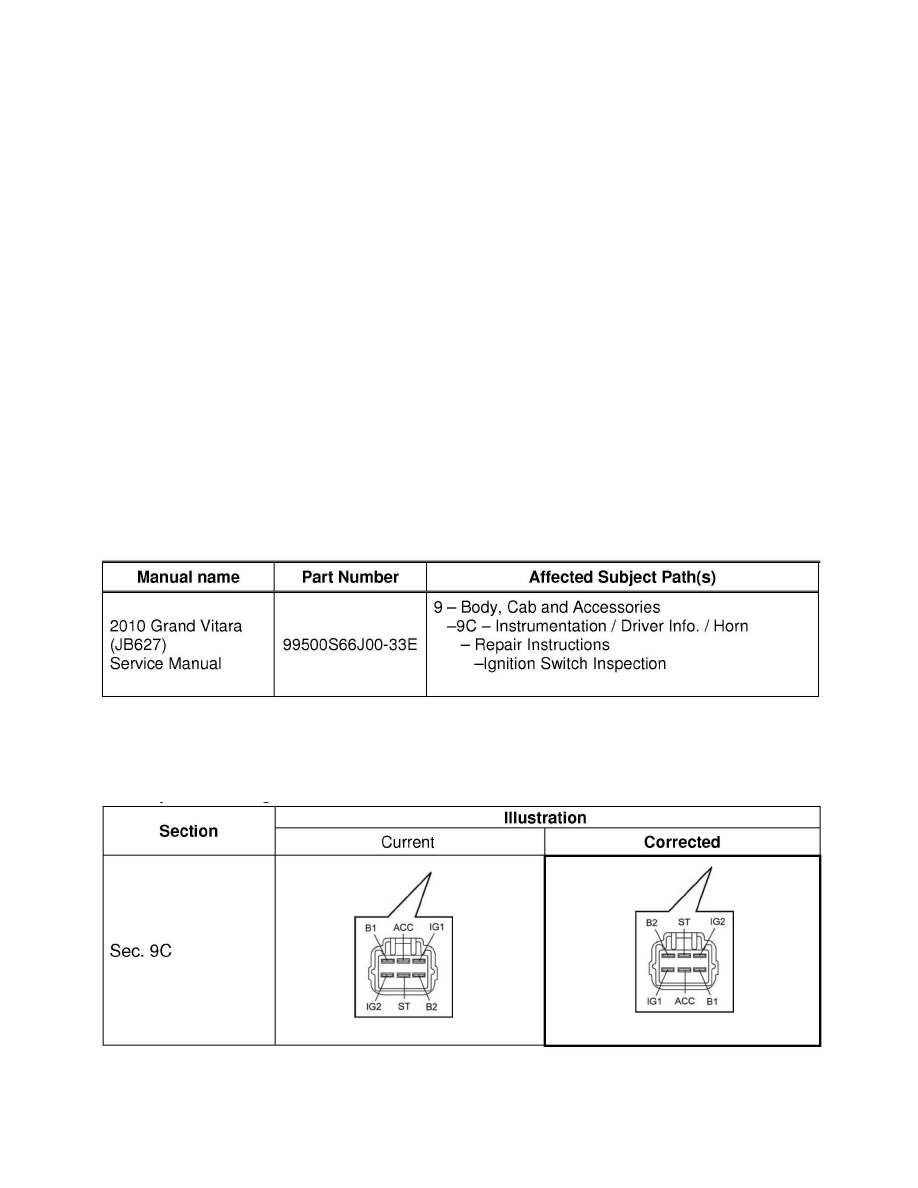

Please review the description of the illustration that was corrected, and refer to the attached service manual pages that reflect the update.
AFFECTED SERVICE MANUAL(S):
Note:
The manual will have been updated if the reprint date shown on the CD/DVD-ROM label is later than the issue date of this bulletin.
