Suzuki Workshop Service and Repair Manuals > Grand Vitara 4WD L4-2.4L (2009) > Starting and Charging | Power and Ground Distribution | Wiring Harness | Component Information | Service and Repair | Around Battery | Page 4738

Around Battery|Page 4739 > < Around Battery|Page 4737

Page 13

background image

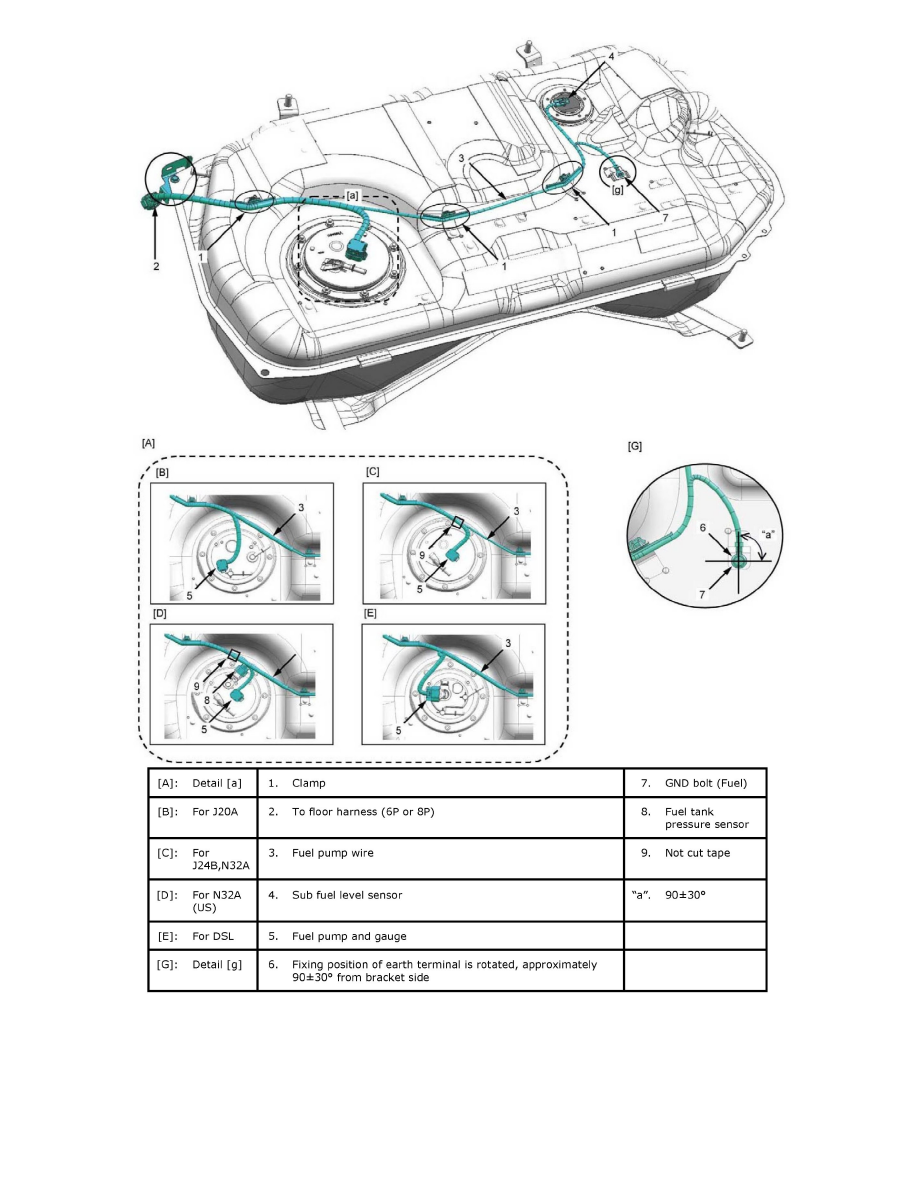

Fuel Pump Wire

Instrument Panel Harness

Instrument Panel Harness

Starting and Charging
Power and Ground Distribution
Wiring Harness / Component Information
Service and Repair / Around Battery
Page 4738

Around Battery|Page 4739 > < Around Battery|Page 4737
