Grand Vitara 4WD V6-3.2L (2010)
Auxiliary Power Outlet: Diagram Information and Instructions
How to Read Connector Codes and Terminal Nos.
How to Read Connector Codes and Terminal Nos.

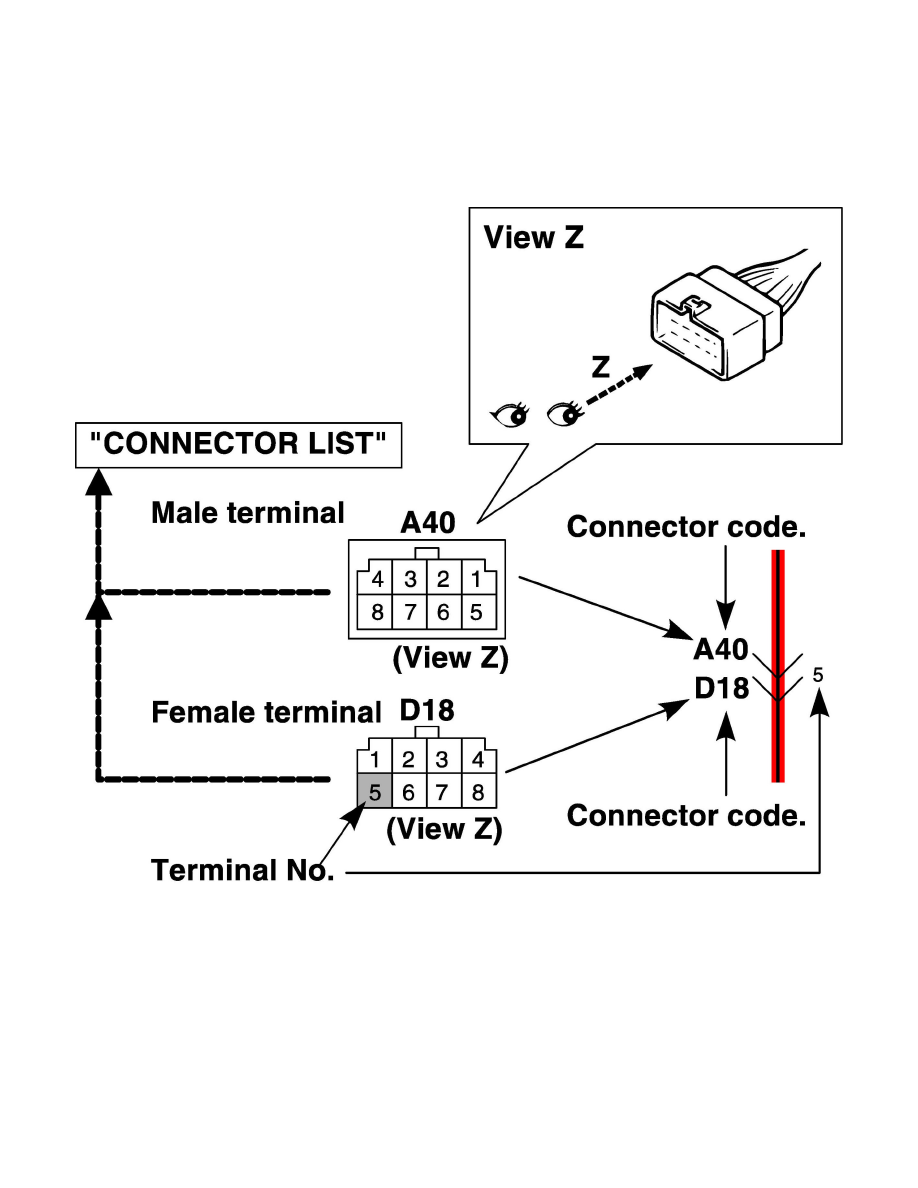

1. Connector code/Terminal No./Terminal layout
-
The connector shape and terminal layout shown in this manual are those when viewed from "Z" in the illustration.
Refer to List of Connectors.
NOTE: Molded terminal numbers that are different from the above can be found on some connectors in rare cases. These molded numbers are
not applied in this manual.
2. Connector type
