Grand Vitara JS 2WD V6-2.5L (1999)
Front Door Panel: Service and Repair
Front Door Trim Panel Removal and Installation

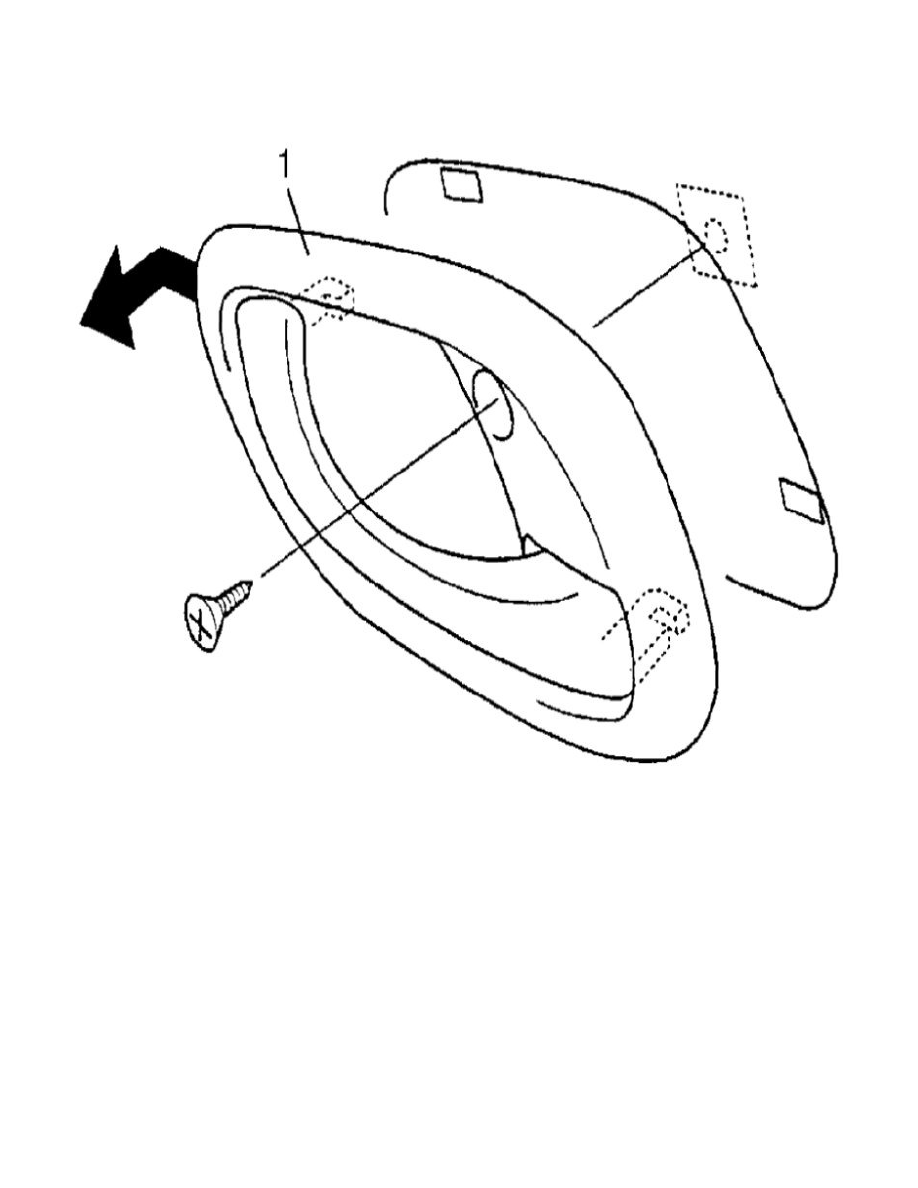

1. Remove inside handle bezel (1).
2. Remove door mirror bezel (if equipped).
3. Remove inside lock knob and door inside pull handle case fitting screw.
4. Remove window regulator handle (if equipped). To remove regulator handle, pull off snap ring by using a cloth as shown in the figure.
