Grand Vitara JS 2WD V6-2.5L (1999)
Transmission Position Switch/Sensor: Testing and Inspection

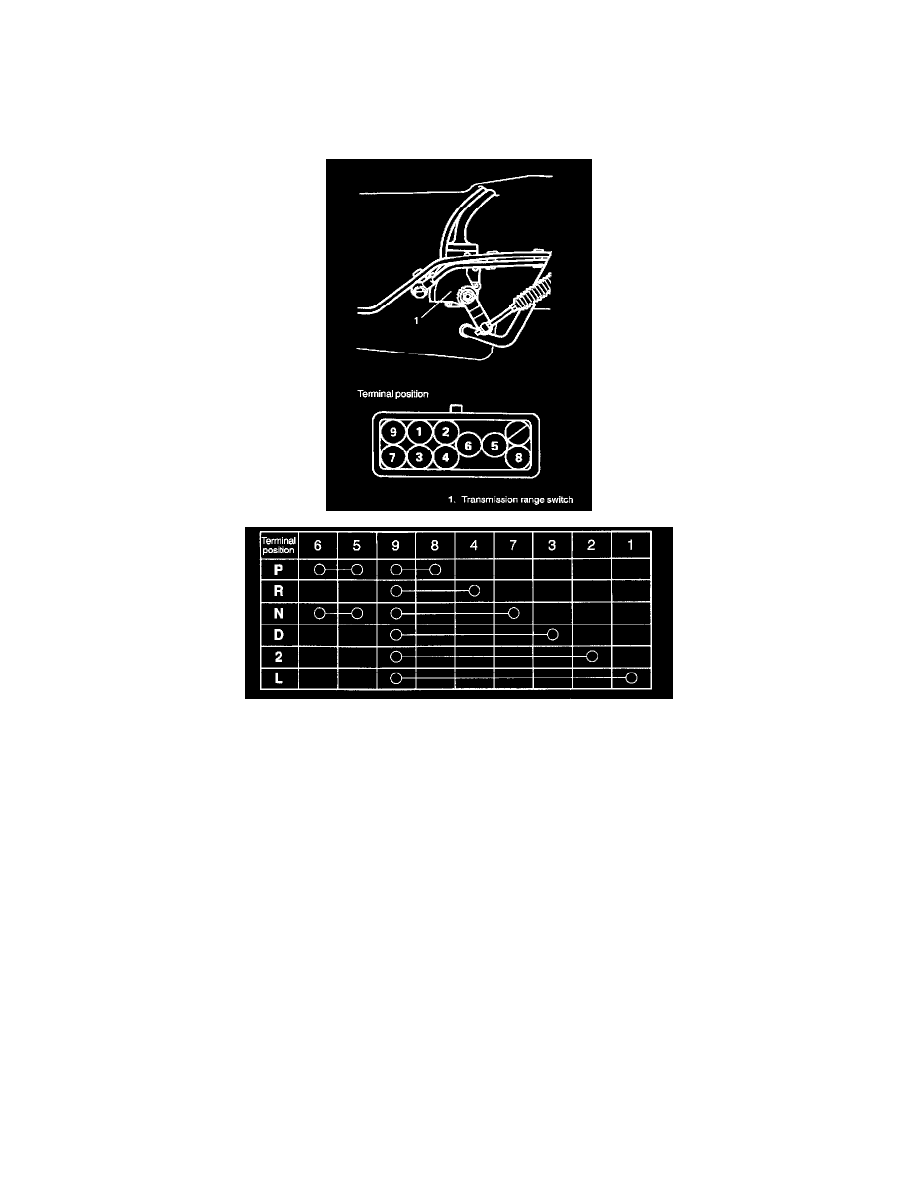

TRANSMISSION RANGE SWITCH
INSPECTION AND ADJUSTMENT
1. Shift select lever to "N" range.
2. Fix transmission range switch with groove in transmission range switch and match mark on shaft aligned.
3. Check that engine starts in "N" and "P" ranges but it doesn't start in "D", "2", "L" or "R" range. Also, check that back-up lamp lights in "R" range.
4. If faulty condition cannot be corrected by adjustment, disconnect transmission range switch coupler and check that continuity
