Grand Vitara JS 2WD V6-2.5L (1999)
Air Flow Meter/Sensor: Service and Repair
Removal

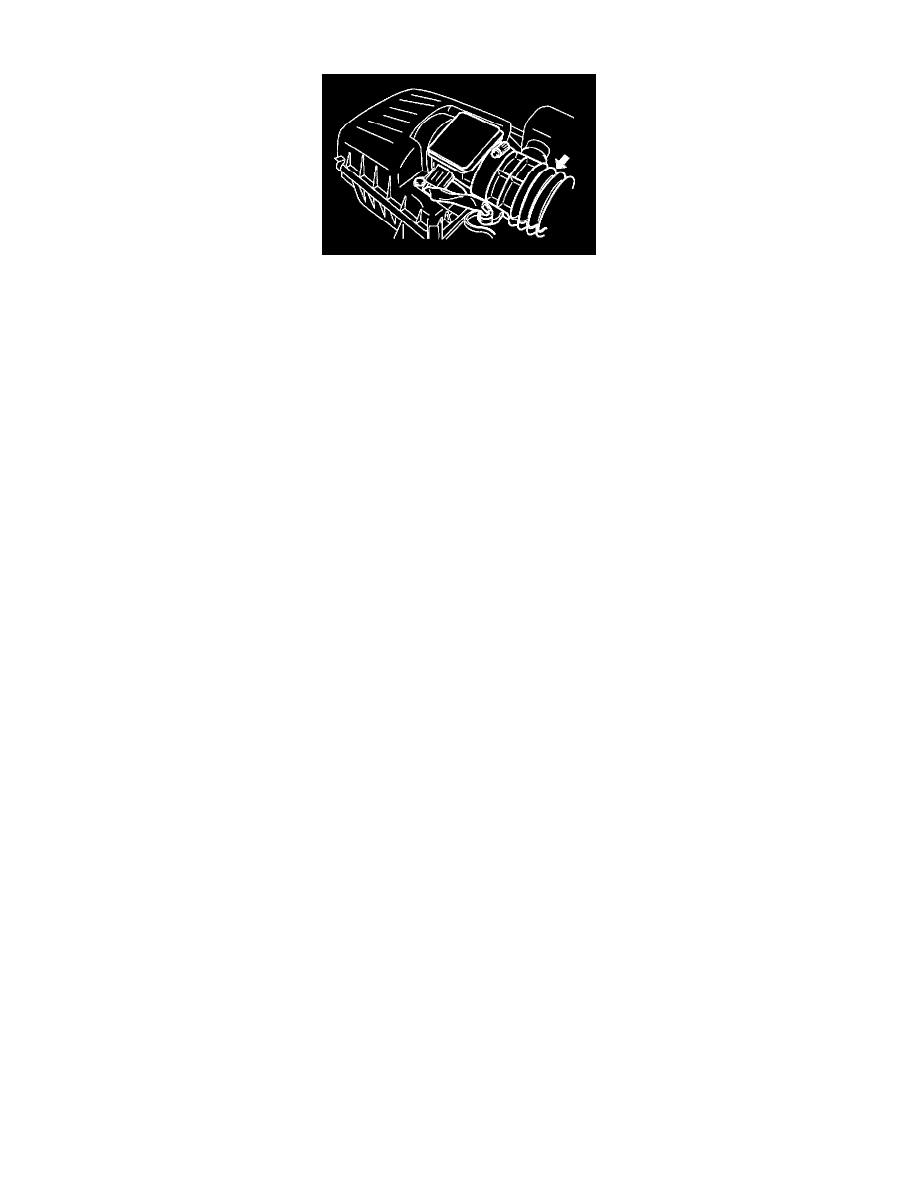

1. Disconnect negative cable at battery and coupler from MAF sensor.
2. Remove throttle body, referring to "THROTTLE BODY REMOVAL".
NOTE: Don't remove MAF sensor.
CAUTION:
-
Do not expose MAF sensor (throttle body) to any shock.
-
Do not blow compressed air by using air gun or the like.
-
Do not put finger or any other object into MAF sensor and keep away from net. Malfunction may occur.
Installation
1. Install throttle body, referring to "THROTTLE BODY INSTALLATION".
