Grand Vitara LTD 4WD V6-2.5L (2002)
ABS Light: Description and Operation
Indicators
-
ABS Warning Light
The EBCM continuously monitors itself and the other ABS components. If the EBCM detects a problem with the system, the amber "ABS"
warning light will light continuously to alert the driver of the problem. A solid "ABS" warning light indicates that a problem has been detected that
affects the operation of ABS. No antilock braking will be available. Normal, non-antilock brake performance will remain. In order to regain ABS
braking ability, the ABS must be serviced.
-
Brake Warning Light
The red "BRAKE" warning light will be illuminated when a low brake fluid level in the master cylinder is sensed, the parking brake switch is
closed (parking brake engaged), the ignition switch is in "ON" position and the engine is not running. The EBCM is not connected to the red
"BRAKE" warning light, and cannot illuminate this lamp.

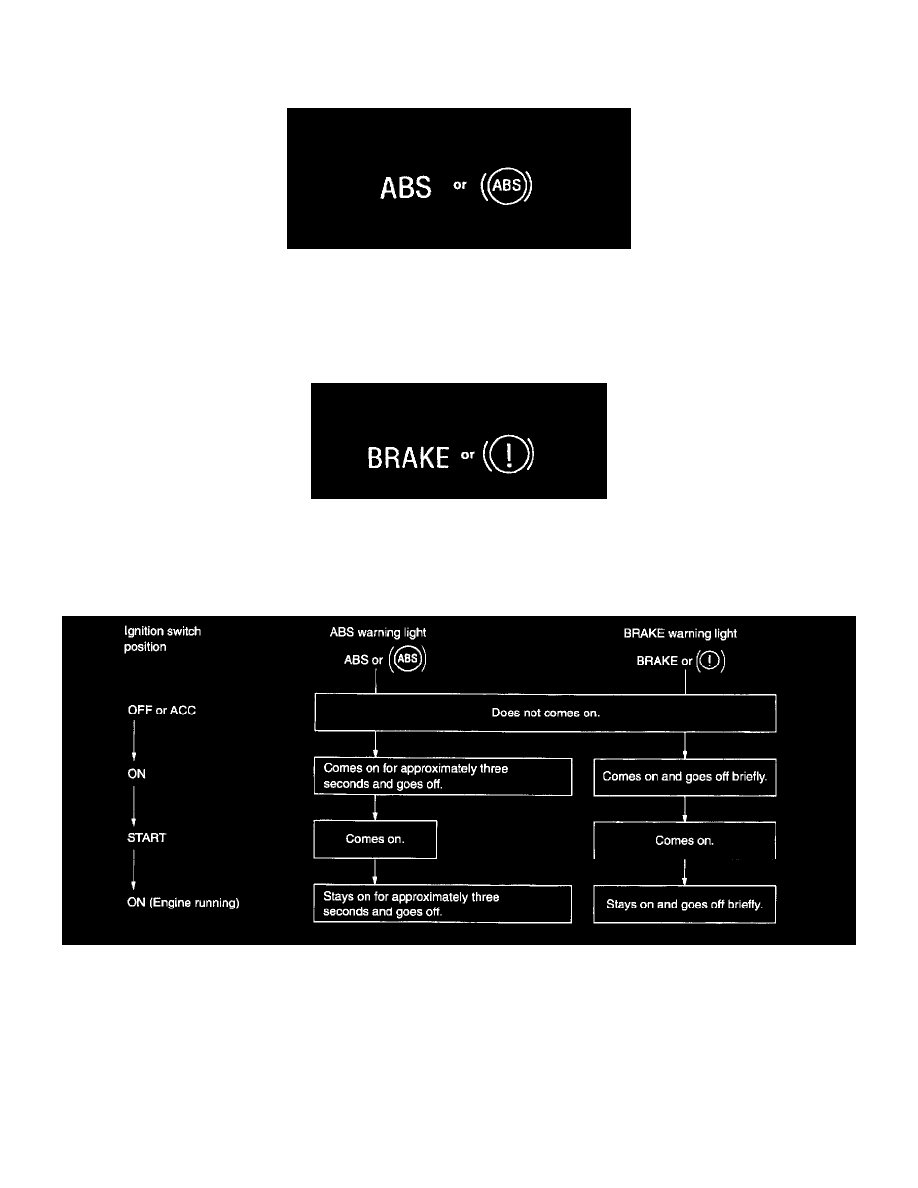

Normal indicator lights operation
The ABS uses two lights, the amber ABS warning light and a red BRAKE warning light.
NOTE: When performing the check, be sure to release the parking brake and apply wheel stoppers to the tires, or the BRAKE warning light will stay
ON.
System Self Test (Initialization)
The EBCM performs an Initialization test at the beginning of each drive cycle. The initialization sequence cycles the relay, solenoids and pump motor
for 1.5 seconds to check component operation. If any error is detected, the EBCM will set the applicable DTC. The initialization sequence may be
heard and felt while it is taking place, and is considered a part of NORMAL SYSTEM OPERATION.
If a brake switch input is not seen (foot off the brake) by the EBCM, the initialization will occur immediately after start up.
If the brake switch input is seen (foot on the brake) during start up, the initialization will not occur until either the brake switch input is not seen (foot
