Dome Lamp: Service and Repair
Front Dome And Spot Light Removal And Installation

Front Dome and Spot Light Removal and Installation

Removal

1. Remove overhead console box.

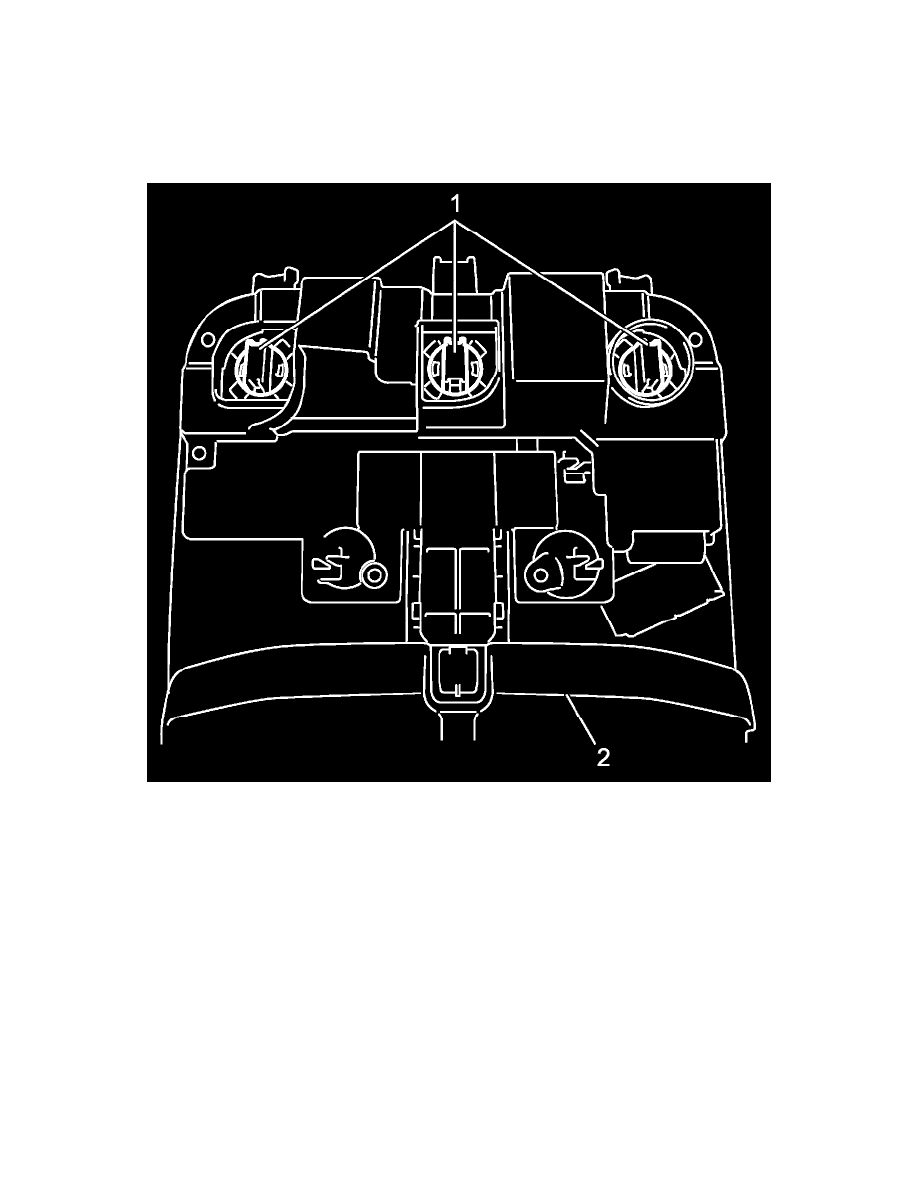

2. Remove bulb socket (1) from overhead console (2), and remove bulb.

Installation

Reverse removal procedure.
