Kizashi AWD L4-2.4L (2010)
Turn Signal Lamp: Service and Repair
Side Turn Signal Light Removal And Installation
Side Turn Signal Light Removal and Installation
Removal

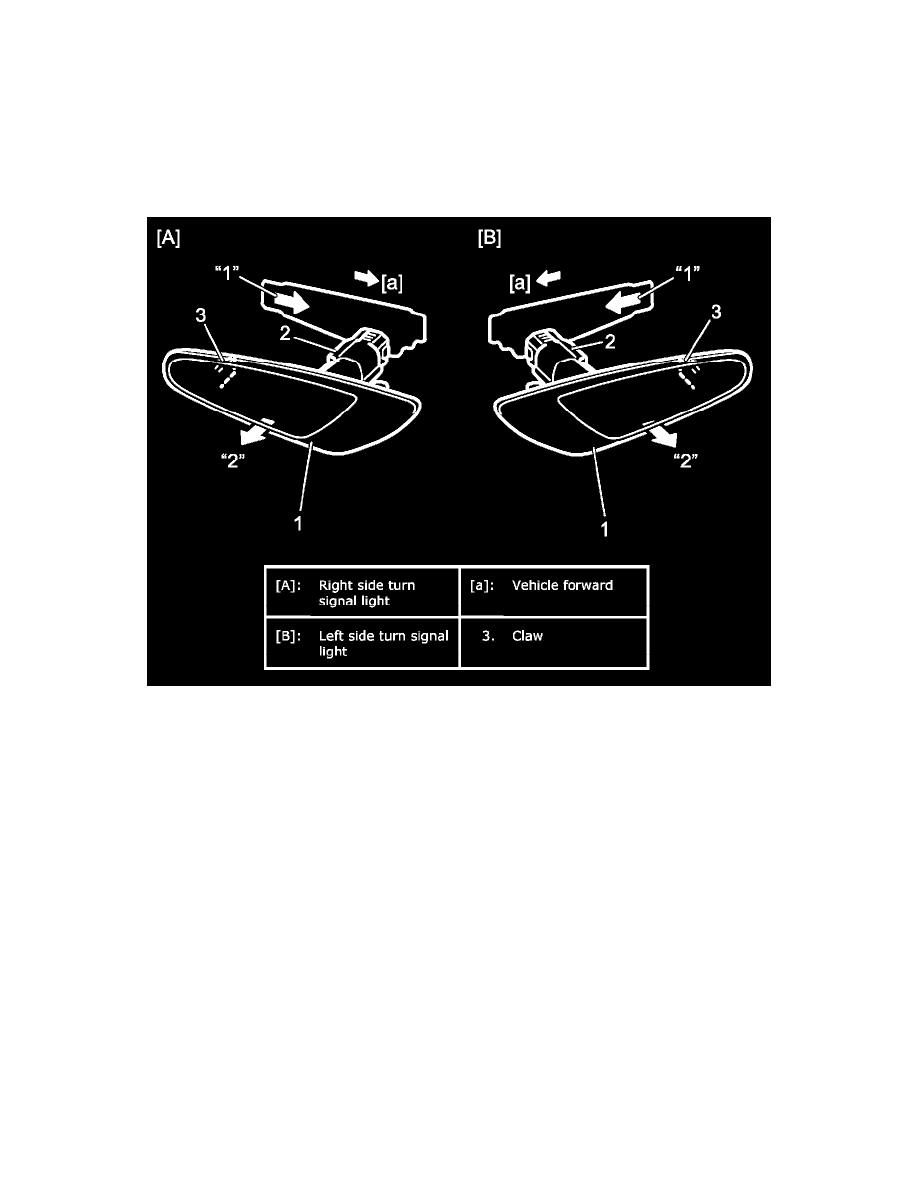

1. Remove side turn signal light (1) by moving it in order of "1" to "2" as shown in figure.
2. Disconnect side turn signal light connector (2).
NOTE: If bulb is blown out, replace side turn signal light assembly. Bulb of side turn signal light cannot be replaced.
Installation
Reverse removal procedure.
