Alignment: Description and Operation (page 4 of 7)
- Make
- Suzuki
- Model
- Kizashi AWD
- Engine
- L4-2.4L
- Year
- 2010
- Section
- Alignment
MaintenanceDescription and Operation · page 4 of 7

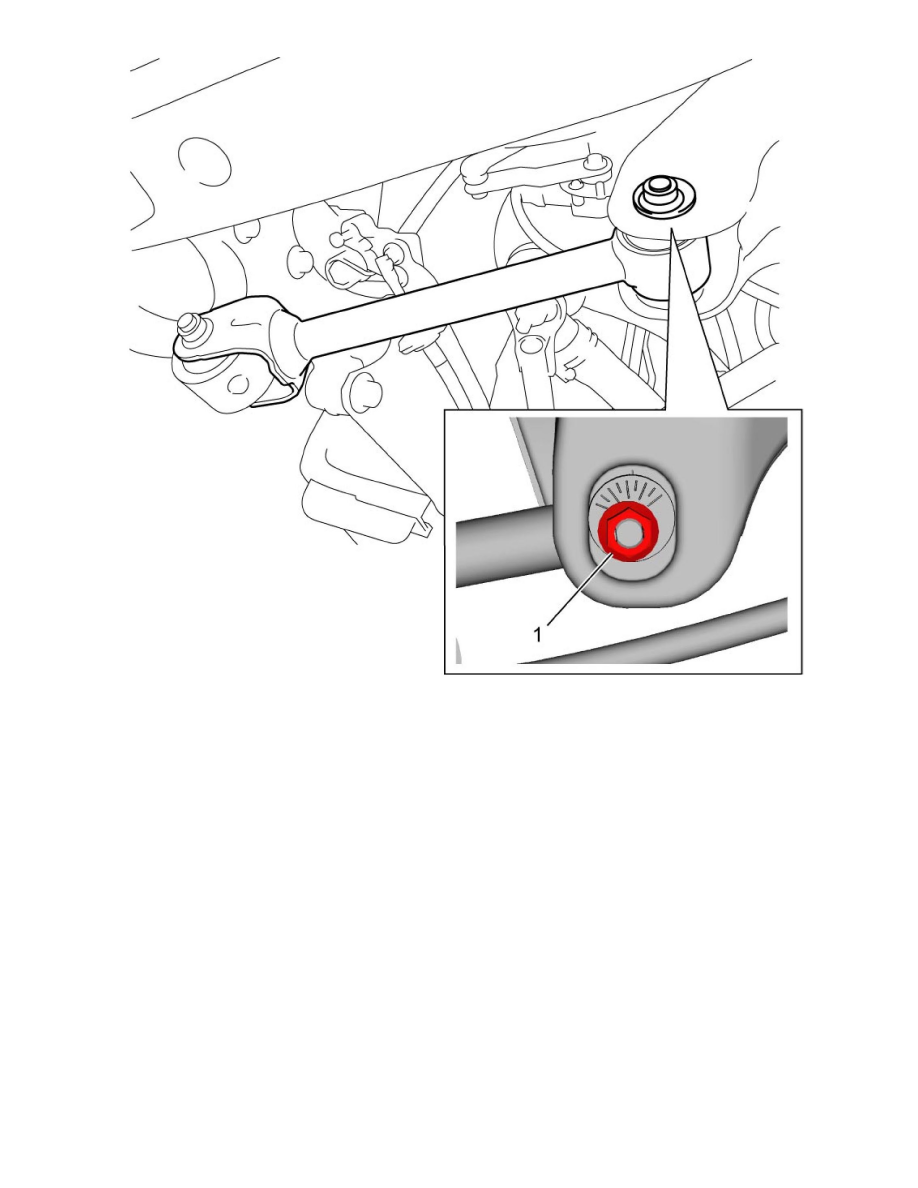

3) Turn adjustment bolts (1) on right and left control rods by same amount to adjust toe and camber to values in specified ranges.
NOTE:
Turning bolt in direction [a] causes camber to change toward "+" and toe toward "IN"; turning it in direction [b] causes camber to change
toward "-" and toe toward "OUT".
