Kizashi AWD L4-2.4L (2010)
![background image](/suzuki/kizashi_awd/l4-2.4l/Page-1270003.png)

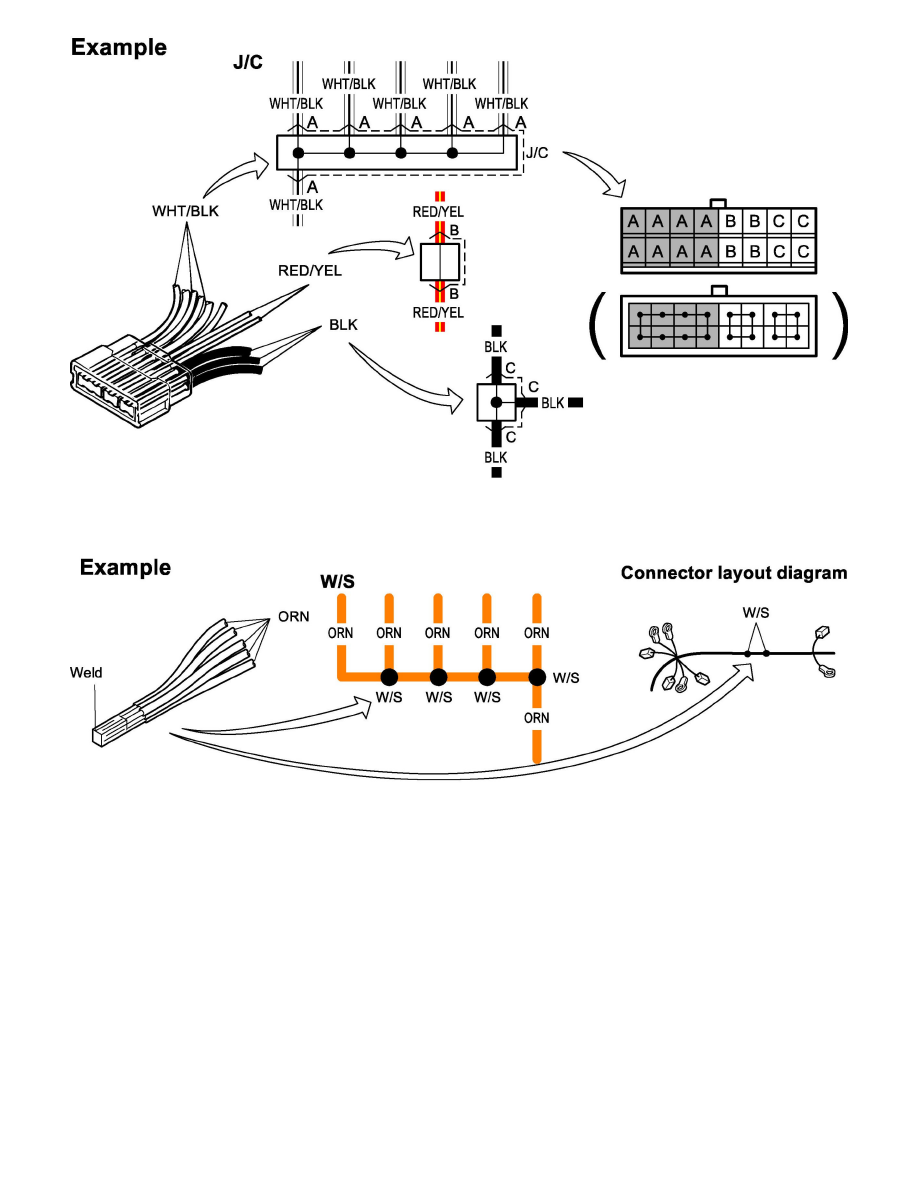

5. Weld splice (W/S)
-
Several different wires with the same wire color are joined by welding at a W/S.
6. Junction block (J/B)
5. Weld splice (W/S)
-
Several different wires with the same wire color are joined by welding at a W/S.
6. Junction block (J/B)
