Sidekick L4-1324cc 1.3L SOHC 5 Carb 8V (1989)
Windows: Technical Service Bulletins
Power Window - Service Information
TSB No.: TS 2-05 05 06190
Section Title: Body Electrical
Division: Automotive
Category: Technical
SUBJECT:
POWER WINDOW CONTROL SYSTEM
MODEL: SIDEKICK
YEAR: ALL
The purpose of this bulletin is to provide the following information on the Sidekick power window control system:
1.
Location of System Components
2.
System Wiring Diagram
3.
Operation of System
1.
Location of System Components
The power window control system is so designed that it electrically controls up and down movement of side door window glass by means of the motor
which is installed to the window regulator.

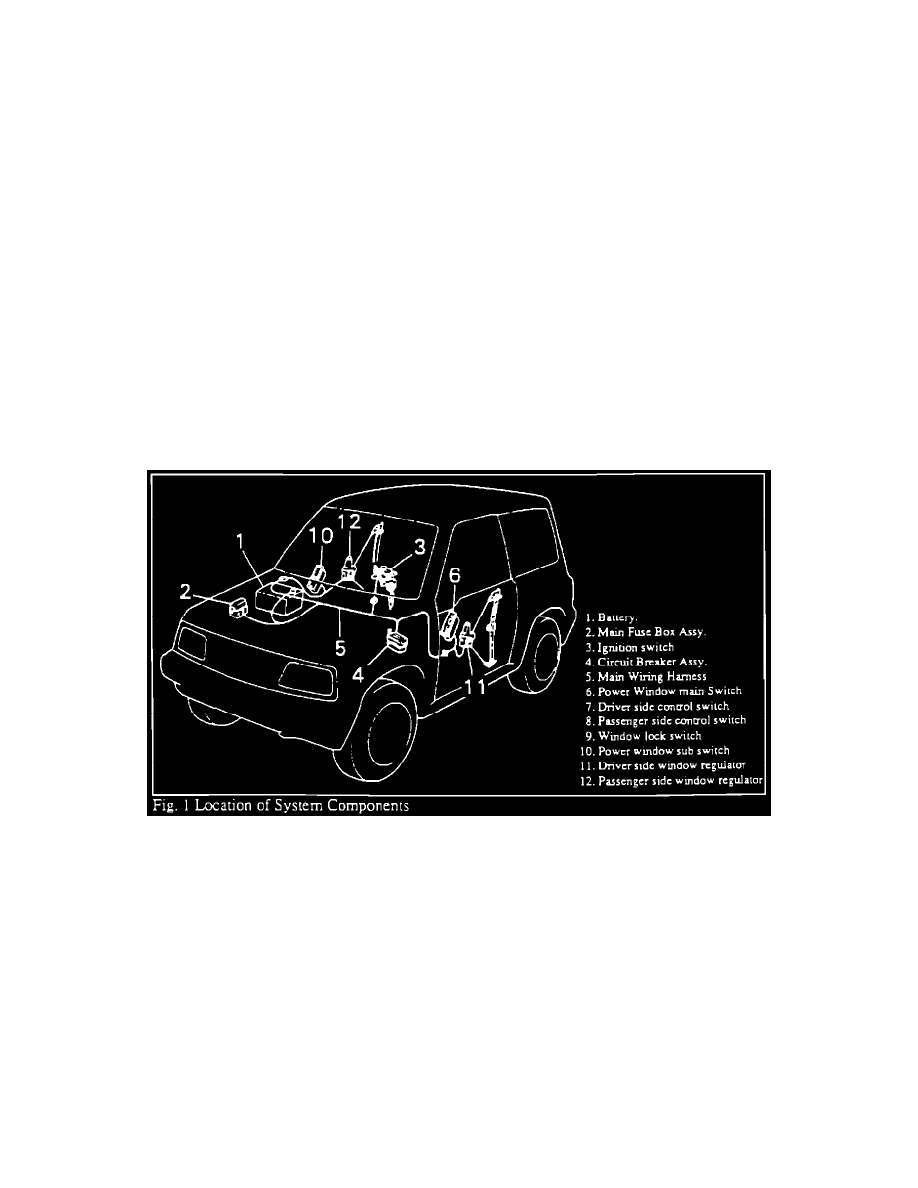

The system consists of the ignition switch, power window switches, window regulator motors and related wiring harness. The figure shows the location
of its component parts.
