Data Link Connector: Locations

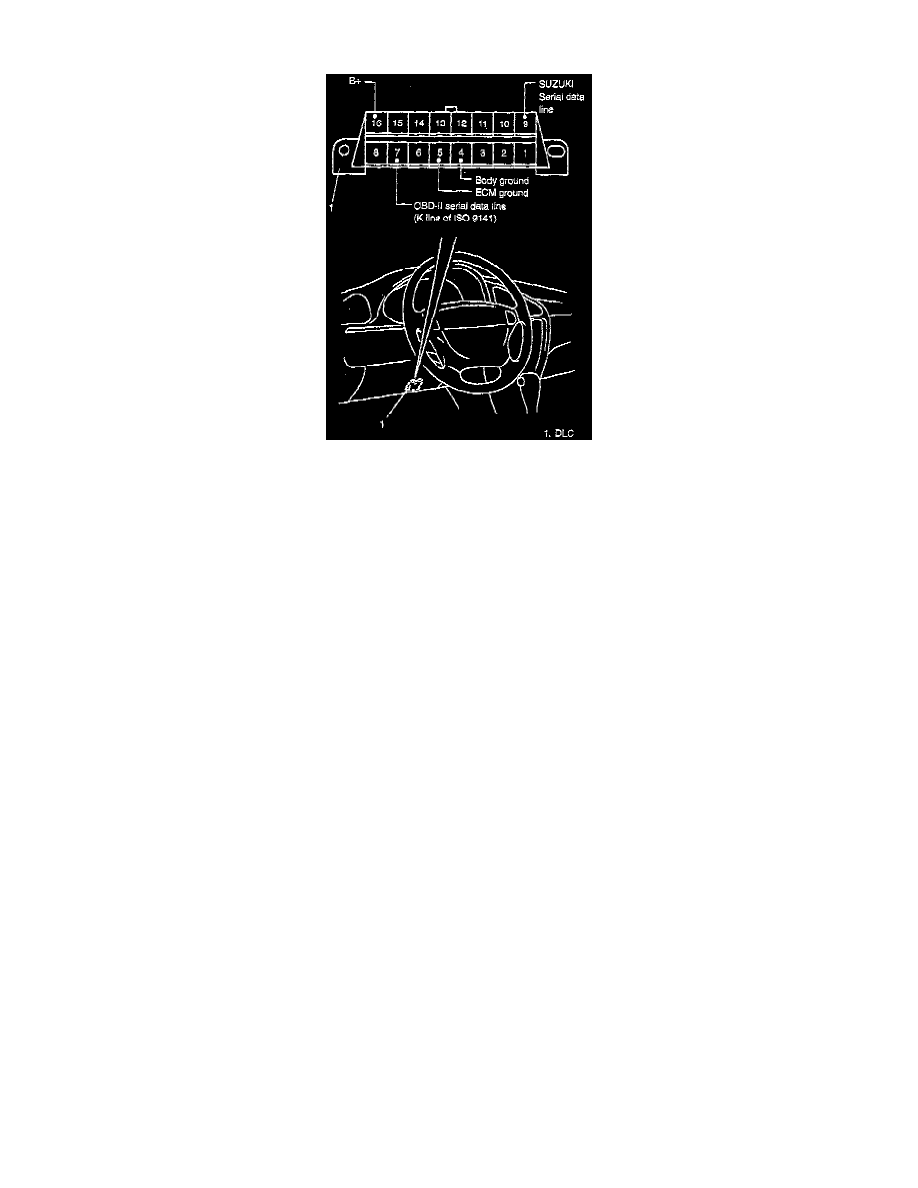

DATA LINK CONNECTOR (DLC)

DLC is located under the dash on the drivers side.
