Swift L4-1298cc 1.3L SOHC MFI (1997)
![background image](/suzuki/swift/l4-1298cc_1.3l_sohc_mfi/Page-587001.png)
Power Steering Pressure Signal: Description and Operation

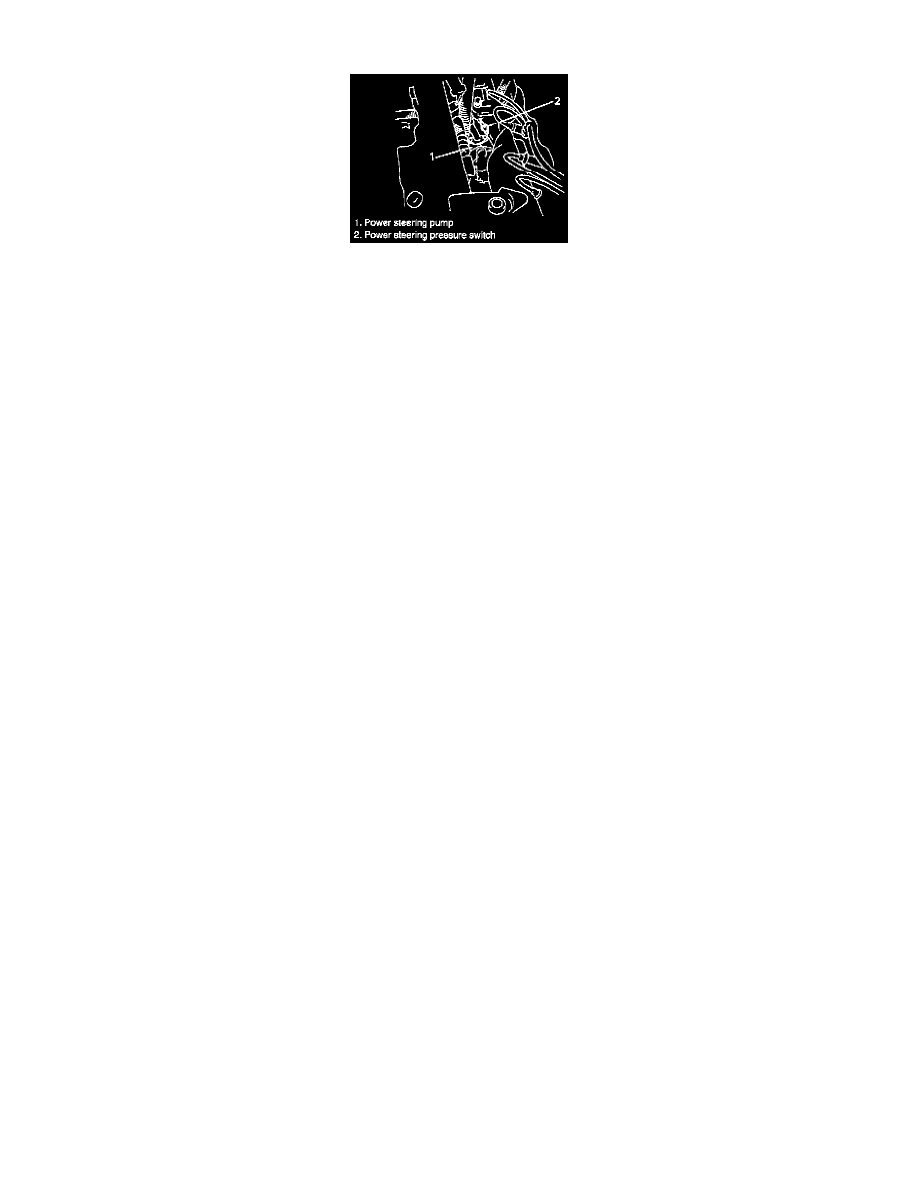

This signal is sent from the power steering pressure switch. The power steering pressure switch is installed on the power steering pump body. The switch
turns ON when the oil pressure is higher than 1500 - 2000 kPa (15 - 20 kg-cm2, 215 - 285 psi). The turning of the steering wheel causes oil pressure to
increase. ECM uses it for controlling ISC actuator.
