Air Conditioning Switch: Testing and Inspection

1. Disconnect negative (-) cable at battery.
2. Remove heater control knobs and panel.
3. Disconnect A/C switch connector to remove A/C switch.

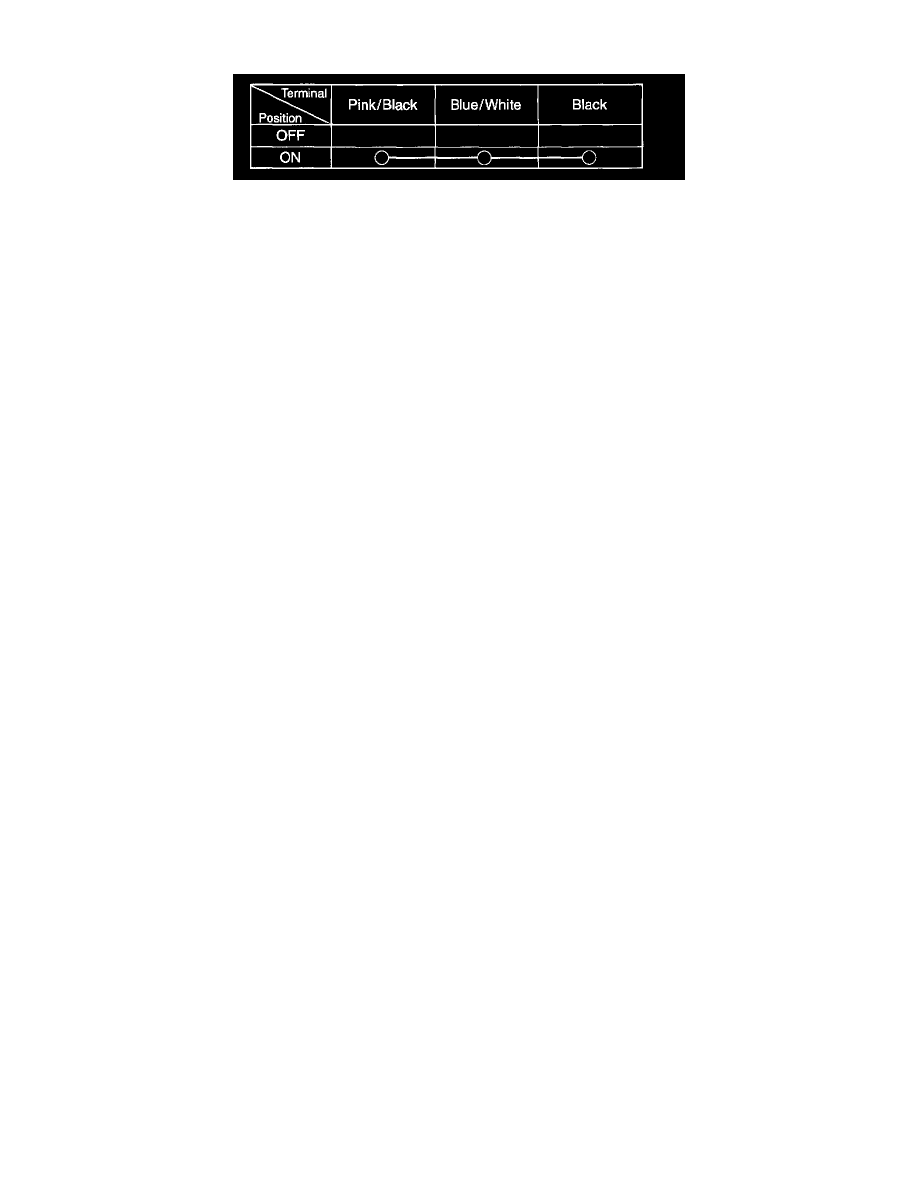

4. Use an ohmmeter to check A/C switch for proper continuity between each terminal.

If A/C switch shows no continuity, replace it.

Heating and Air Conditioning > Air Conditioning Switch > Component Information > Testing and Inspection
