SX4 2WD L4-2.0L (2007)
3)
Install washer and gear shift interlock bolt (3) to which thread lock cement has been applied and then tighten it to specified torque.
"A": Sealant 9900031260 (SUZUKI Bond No.1217G)
Tightening torque
Gear shift interlock bolt (b): 23 Nm (2.3 kgf-m, 17.0 lb-ft)
4)
Install washer and 5th to reverse interlock guide bolt (4) to which thread lock cement has been applied and then tighten it to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
5th to reverse interlock guide bolt (c): 23 Nm (2.3 kgf-m, 17.0 lb-ft)
5)
Connect gear shift and gear select control cables to transaxle.
6)
Install battery and tray with ECM.
7)
Check input shaft for rotation in each gear position.

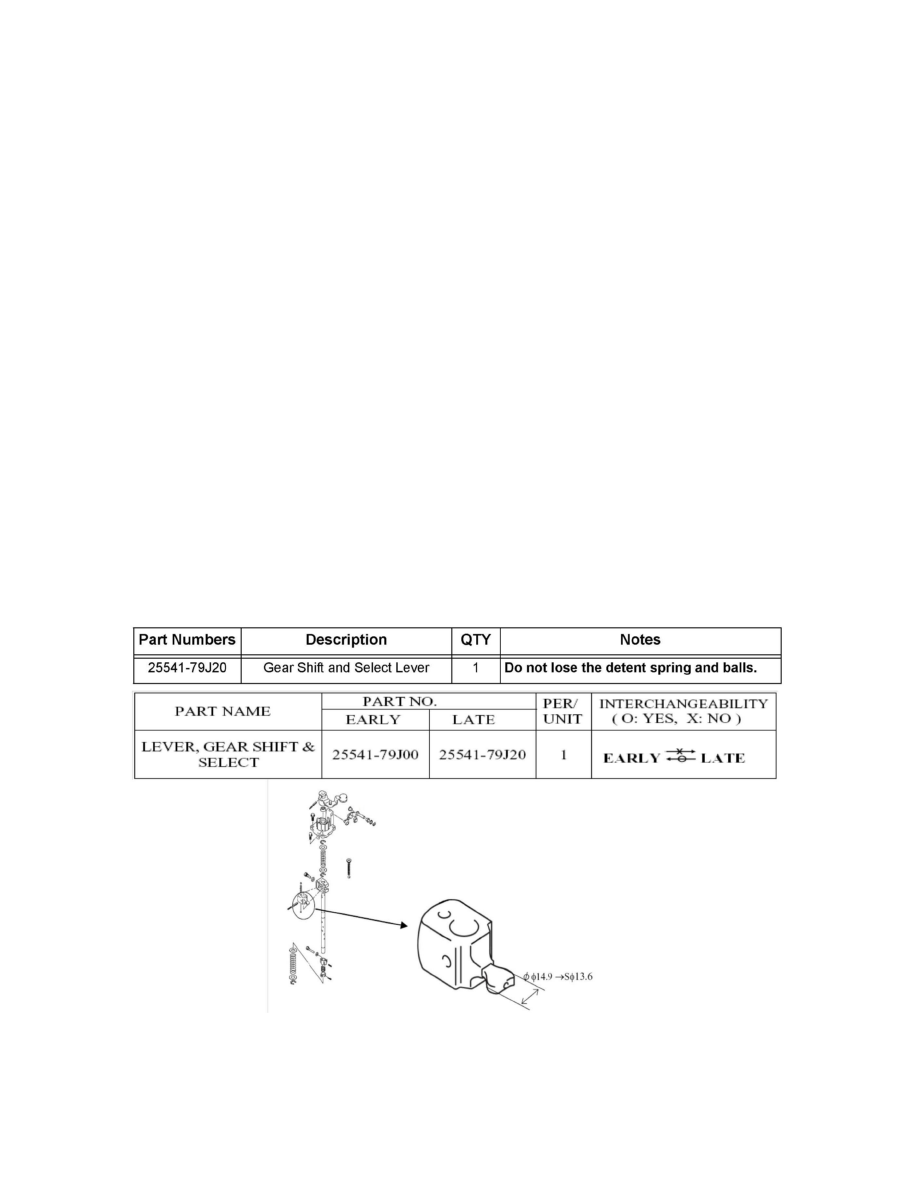

GEAR SHIFT AND SELECT SHAFT ASSEMBLY DISASSEMBLY AND REASSEMBLY
1)
Push spring pins out using 2.8 - 3.0 mm (0.11 - 0.12 in.) commercially available spring pin remover and specified spring pin removers as shown
below.
Special tool
(A): 09922-85811 4.5 mm
(B): 09925-78210 6.0 mm
2)
Inspect component parts for wear, distortion or damage. If any detect is found, replace detective part with new one.
