Vitara 2WD V6-2.5L (2004)

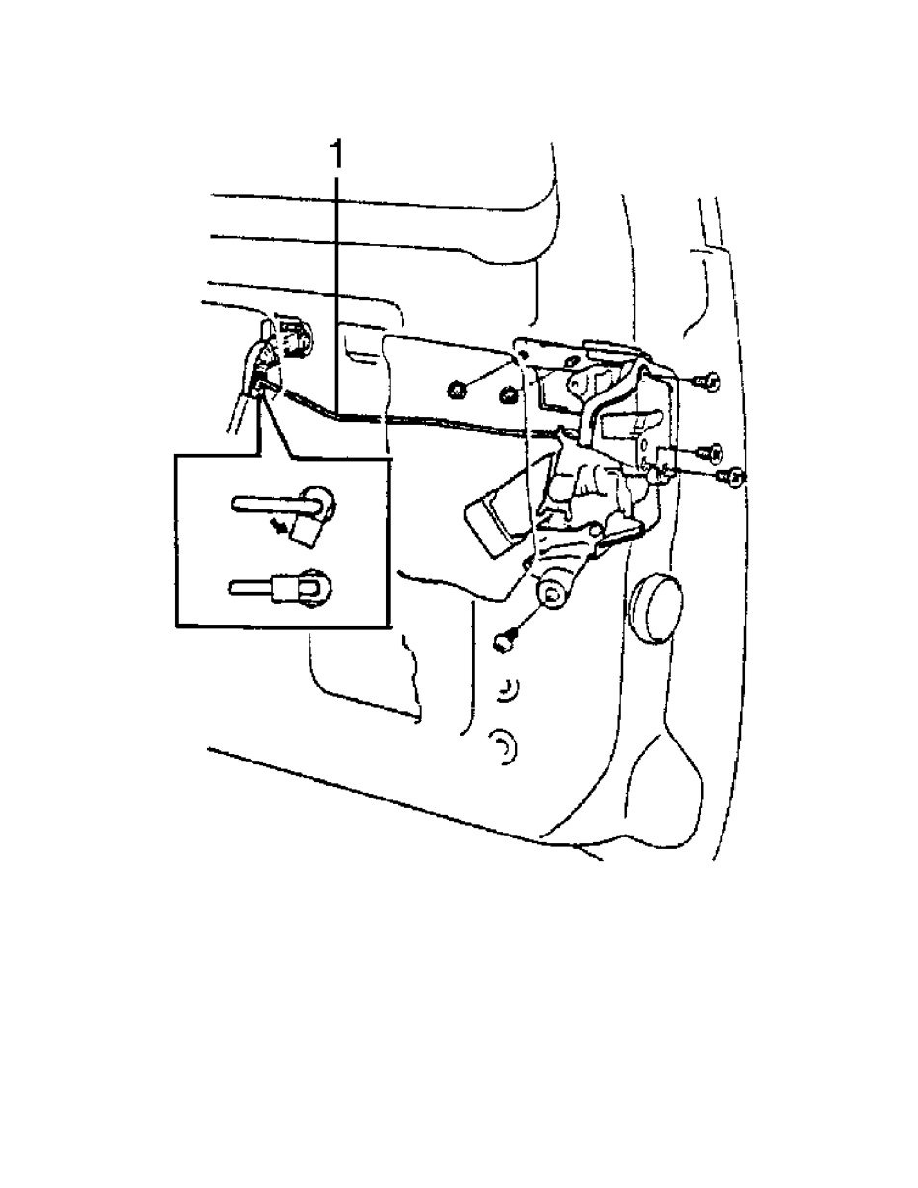

5. Remove back door gate lock control rod (1).
Unlock back door lock rod pin retainer and disconnect control rod.
6. Disconnect back door lock motor lead wire (if equipped).
7. Remove lock assembly.
Installation
Reverse removal procedure to install back door lock assembly noting the following points.
^
Back door latch striker.
Adjust back door latch striker so that its center aligns with the center of groove in back door latch base. To adjust back door latch and striker with
each other, insert proper number of shims (1) below the bottom of striker, as shown.
