Vitara 4WD L4-2.0L (2003)
Oil Filter

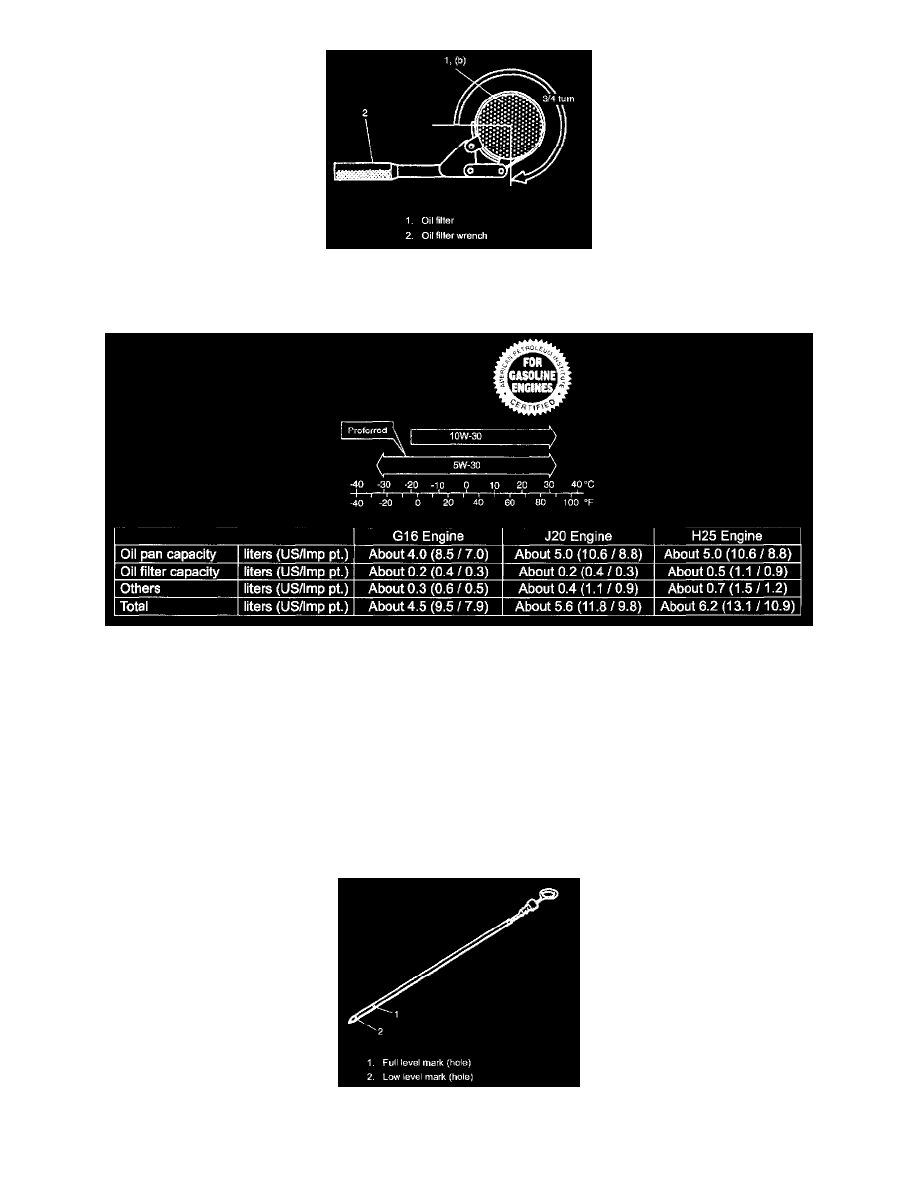

5. Tighten the filter 3/4 turn from the point of contact with the mounting surface using an oil filter wrench.
Proper Engine Oil Viscosity Chart
6. Replenish oil until oil level is brought to FULL level mark on dipstick. (oil pan and oil filter capacity). The filler inlet is at the top of the cylinder
head cover.
Use only engine oil with American Petroleum Institute (API) Certified For Gasoline Engines "Starburst" symbol.
Select the appropriate oil viscosity according to the chart.
It is highly recommended to use SAE 5W-30 oil.
However, SAE 10W-30 oil is usable for ambient temperatures above -18 °C (0 °F).
NOTE: Engine oil capacity is specified. However, note that the amount of oil required when actually changing oil may somewhat differ from the
data in the table depending on various conditions (temperature, viscosity, etc.)
7. Check oil filter and drain plug for oil leakage.
8. Start engine and run it for three minutes. Stop it and wait five minutes before checking oil level. Add oil, as necessary, to bring oil level to FULL
level mark on dipstick.
