Auxiliary Power Outlet|Locations|Page 4939 > < Electrical - SRS And HV Wiring Repairs

Tundra 2WD V6-4.0L (1GR-FE) (2005)

  • Power and Ground Distribution
  • Auxiliary Power Outlet
  • Component Information
  • Locations

Page 1
background image

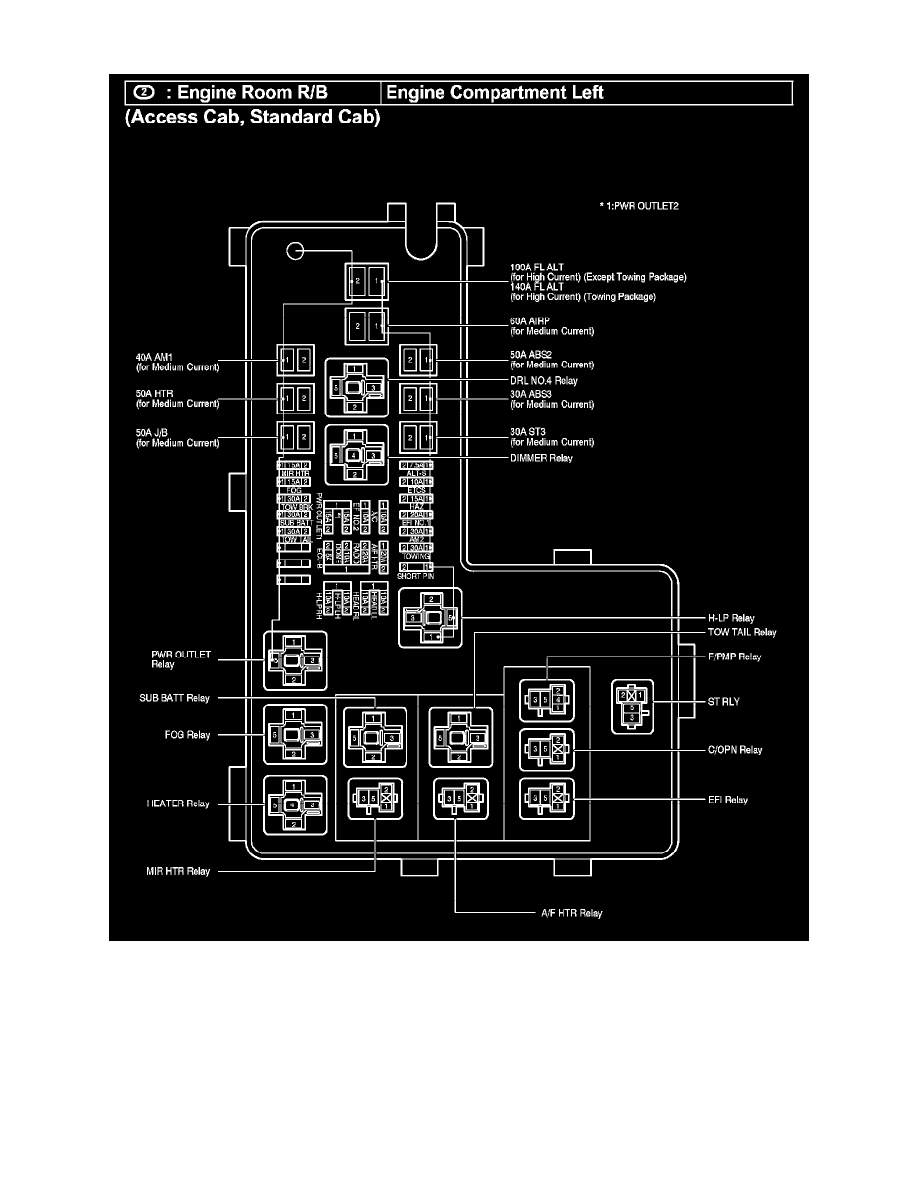

Auxiliary Power Outlet: Locations

Engine Room R/B - Engine Compartment Left

  • Power and Ground Distribution
  • Auxiliary Power Outlet
  • Component Information
  • Locations
