Timing Cover: Specifications

Timing Cover

Temporarily install the timing chain cover with the 28 bolts and nut.

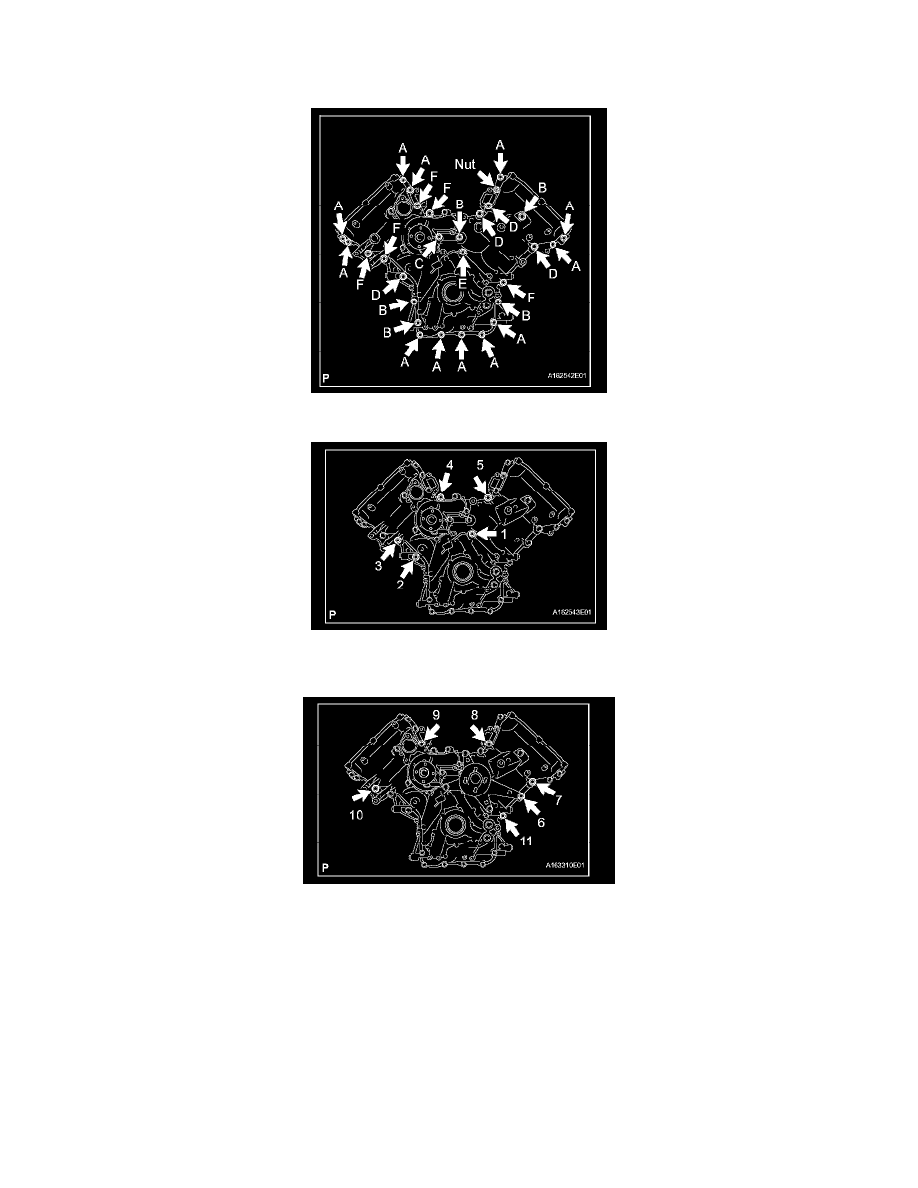

Step 1: Tighten the 5 bolts in several steps in the sequence shown in the illustration.

Torque: ............................................................................................................................................................... 47 N*m (479 kgf*cm, 35 ft.*lbf)

Step 2: Tighten the 6 bolts labeled 6 to 11 in several steps in the sequence shown in the illustration.

Torque: ............................................................................................................................................................. 47 N*m (479 kgf*cm, 35 ft.*lbf)
