Front Fog Lamp, Adjust (Additional Lighting)

Front Fog Lamp, Adjust

Adjustment is carried out at vehicle curb weight plus one person or 75 kg/165 lbs on the driver's seat. (Curb weight = weight of operation-ready vehicle with completely filled fuel tank as well as weight of all equipment carried during operation, eg spare wheel, tools, jack, first aid kit, emergency warning triangle, etc). See also "Headlamp Testing and Adjustment" in group "N".

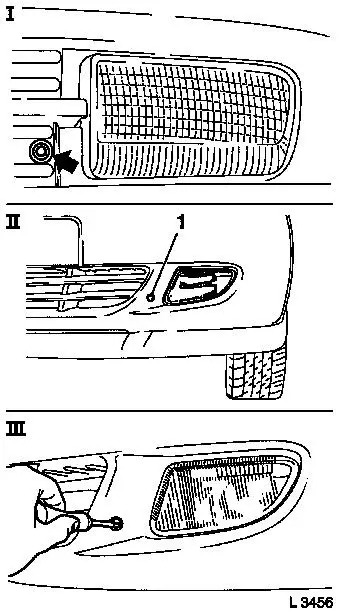

Models F35, F70, F08, F69, F48 (up to Model Year 2000): I Adjust fog lamps via adjustment screw (arrow). Model - F07: II Unclip cover cap (1), III Front Fog Lamp, Adjust

  Adjust

Adjust fog lamps with the adjustment screw (arrow) towards the upper light/dark border using a headlamp adjuster. The light/dark border in this case runs horizontally along the adjustment line.

The inclination of the fog lamp light beam is 20 cm in 10 m (corresponds to a light beam inclination of 2%).

Follow manufacturer's adjustment instructions.

  Adjust

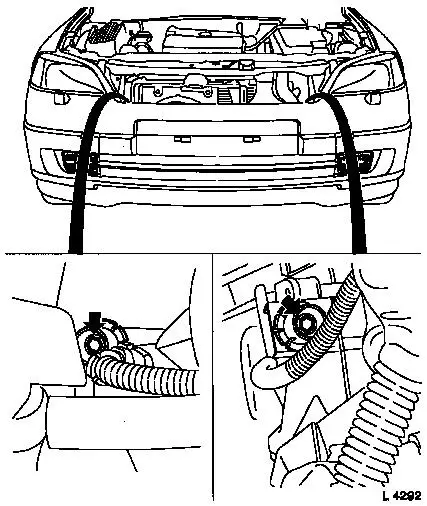

Models F35, F70, F08, F69, F48 as of Model Year 2000:

Adjust fog lamps with the adjustment screw (arrow) towards the upper light/dark border using a headlamp adjuster. The light/dark border in this case runs horizontally along the adjustment line. The inclination of the fog lamp light beam is 20 cm in 10 m (corresponds to a light beam inclination of 2%). ! Warning Follow manufacturer's adjustment instructions.
