Install under-run protection subsequently (Other Accessories)

Make

Vauxhall

Model

Astra G

Section

Other Accessories › Repair Instructions › Install under-run protection subsequently

AccessoriesInstall under-run protection subsequently

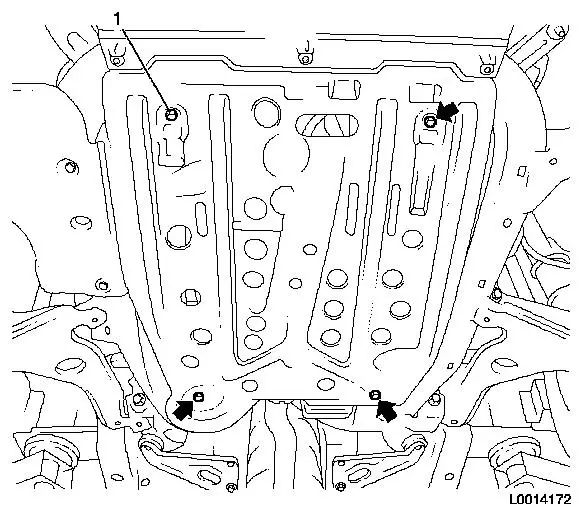

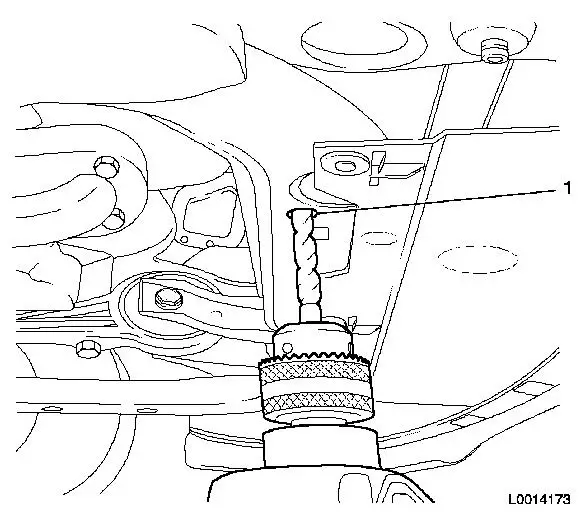

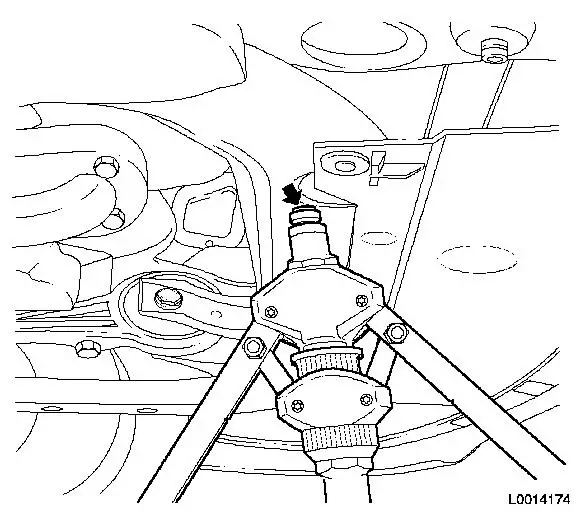

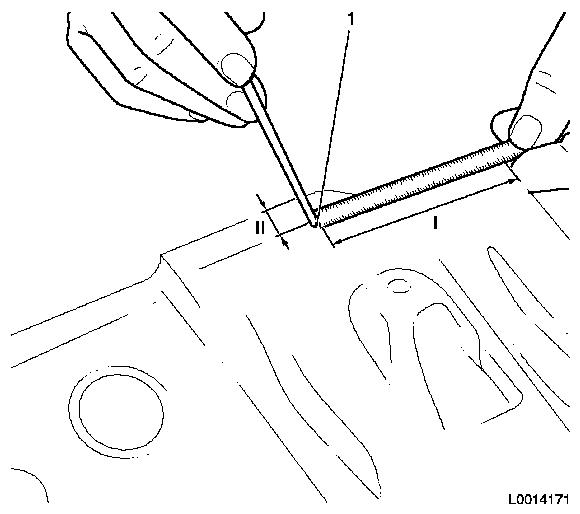

Install under-run protection subsequently Spezialwerkzeugliste: MKM-6108   Install 1.   Prepare under-run protection •   Mark hole (1) position with a scribe = 105 mm = 18 mm 2.   Pre-drill hole with 5 mm drill bit 3.   Complete hole with 9 mm drill bit 4.   Deburr hole edges and mark with paint 5.   Raise vehicle by full height 6.   Attach under-run protection to front axle body Note:   Only tighten bolts hand-tight. •   Screw in 3x bolt (arrows) 7.   Transfer borehole marking (1) to the front axle body 8.   Start drilling front axle body with 9 mm drill bit to mark it 9.   Attach under-run protection of front axle body •   Unscrew and remove 3x bolt •   Remove under-run protection 10.   Drill hole (1) 13.5 mm in front axle body •   Pre-drill hole with 5 mm drill bit •   Open up hole with 9 mm drill bit •   Complete hole with 13.5 mm drill bit 11.   Deburr hole edges and mark with paint 12.   Fit rivet nut (arrow) to front axle body using MKM-6108 13.   Attach under-run protection to front axle body •   Tighten 4x bolt firmly 15 Nm 14.   Lower vehicle by full height
