Clutch Actuator Cylinder Pipe Installation
1. |

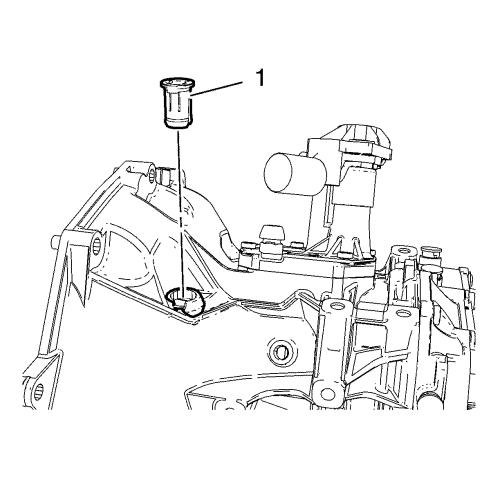

Install a NEW retainer
(1). |
|
Note: Check the seal
rings for cracks and damage. Replace if necessary.
|
2. |

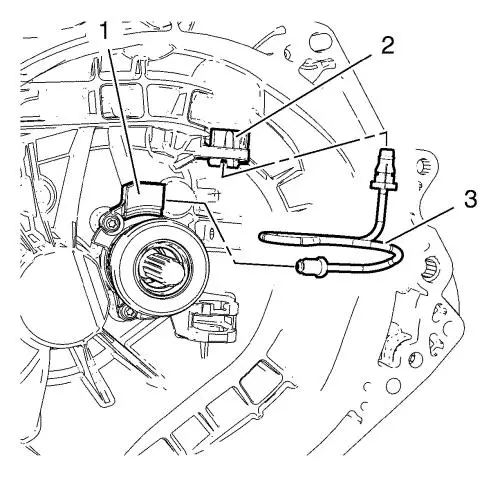

Install the clutch actuator
cylinder pipe (3) carefully to the retainer (2) till it audible
engage. |
3. |
Install the clutch actuator
cylinder pipe (3) to the clutch actuator cylinder (1). |
4. |

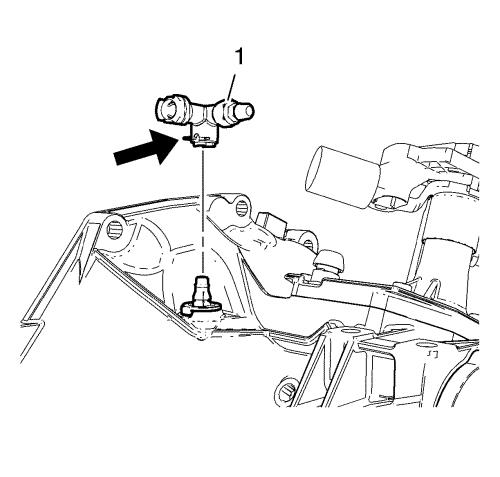

Install the clutch actuator
cylinder pipe elbow (1) to the clutch actuator cylinder pipe till
it audible engage. |
5. |
Install the clutch actuator
cylinder pipe nut (1) and tighten to 14 N·m (124 lb
in) . |
|
