Cabrio GLX L4-2.0L (ABA) (2001)
Shift Cable: Service and Repair
Removing
-
Move selector lever to "P"
-

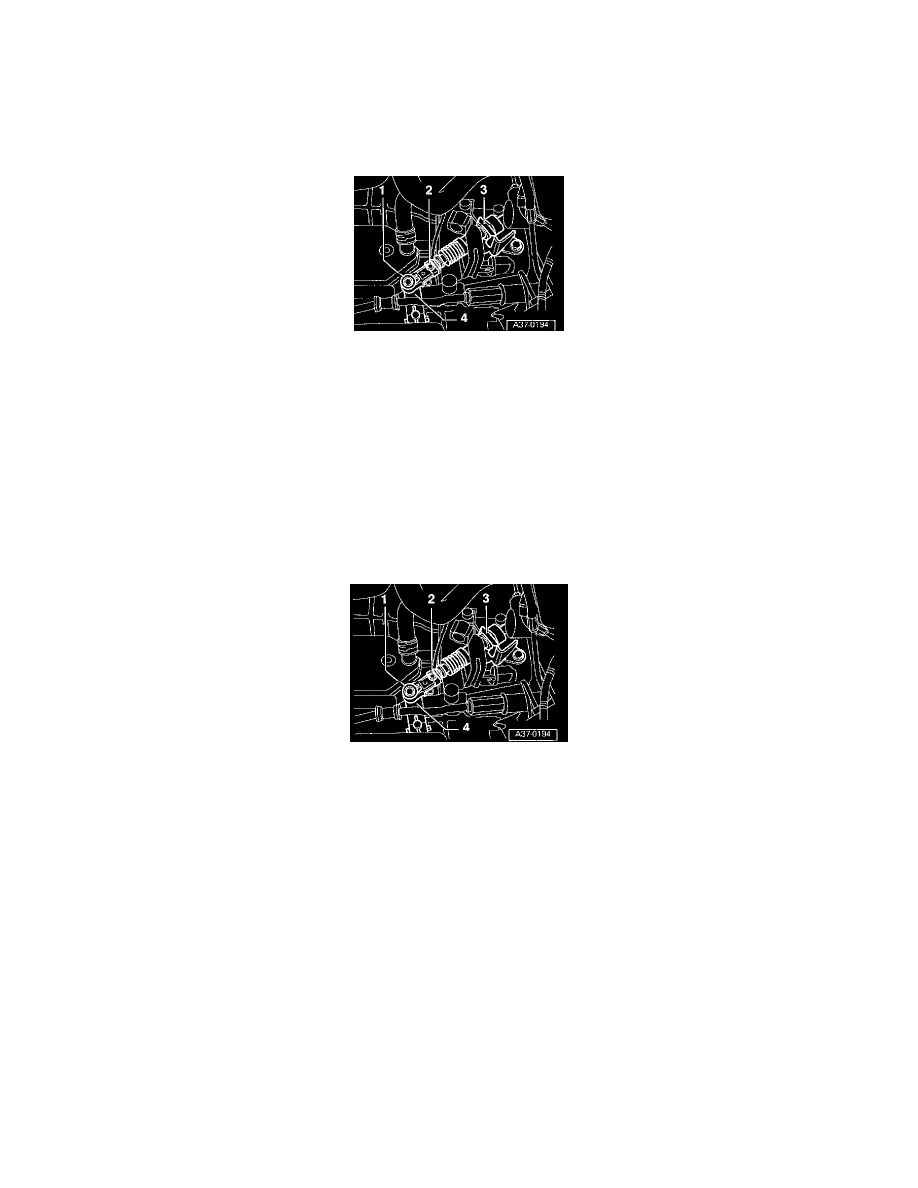

Pull selector lever cable -1- upward off lever/selector shaft -4-.
-
Remove circlip -3- at support bracket.
-
Raise vehicle.
-
Separate exhaust system by loosening the clamping sleeve.
-
Remove tunnel heat shield front and rear.
-
Remove cover from selector lever housing.
-
Pry selector lever cable -3- off selector lever -2-.
-
Pull circlip -1- for securing selector lever cable to selector lever housing out downward.
-
Pull selector cable carefully out of housing.
Installing
Note:
^
Check protective sleeve for damage; the protective sleeve can only be changed together with the selector lever cable.
^
Before installing lightly grease ball socket on end of cable.
^
Check that the protective sleeve is correctly installed. Do not twist protective sleeve.
^
Do not bend or kink selector lever cable.
^
Selector lever and lever/selector shaft are in "P" , the front wheels are blocked.
-
Guide selector lever cable -3- with a new seal into the selector lever housing.
-
Press selector lever cable onto selector lever -2-.
