Eos (1F7) L4-2.0L Turbo (BPY) (2007)
/l4-2.0l_turbo_(bpy)/Page-3258001.png)
Cabin Ventilation Grille: Service and Repair
Intake Air Grille, Removing And Installing
Removing
-
Remove plenum chamber cover and the lying beneath in area of air intake grille.
-

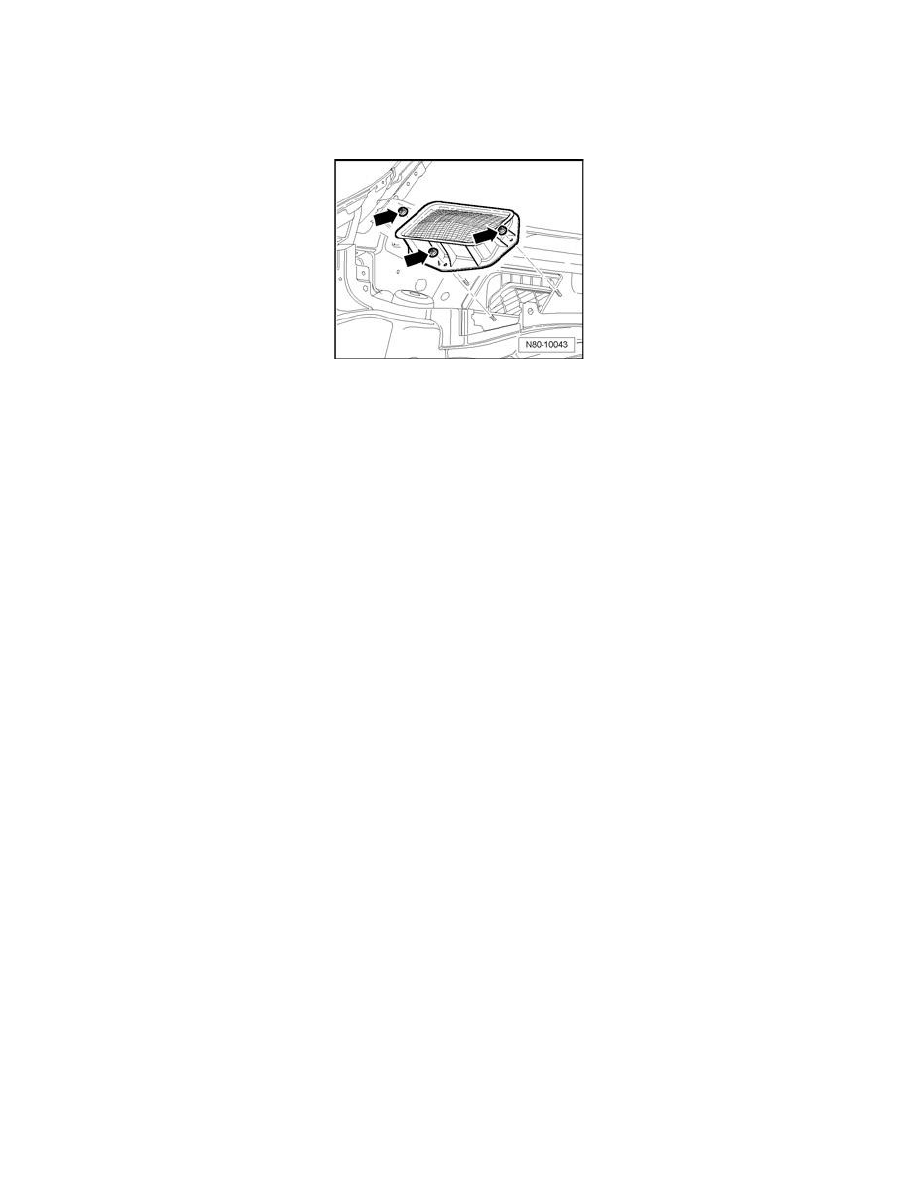

Unscrew mounting nuts -arrows- and remove intake air grille upward.
Installing
Install in reverse order.
NOTE: Make sure seal on air intake grille is seated correctly.
