Acceleration Sensor: Service and Repair
Left Front Body Acceleration Sensor

Left Front Body Acceleration Sensor

Special tools, testers and auxiliary items required

‹› Torque wrench (V.A.G 1410)

Removing

-

Remove wiper arms.

-

Remove plenum chamber cover.

-

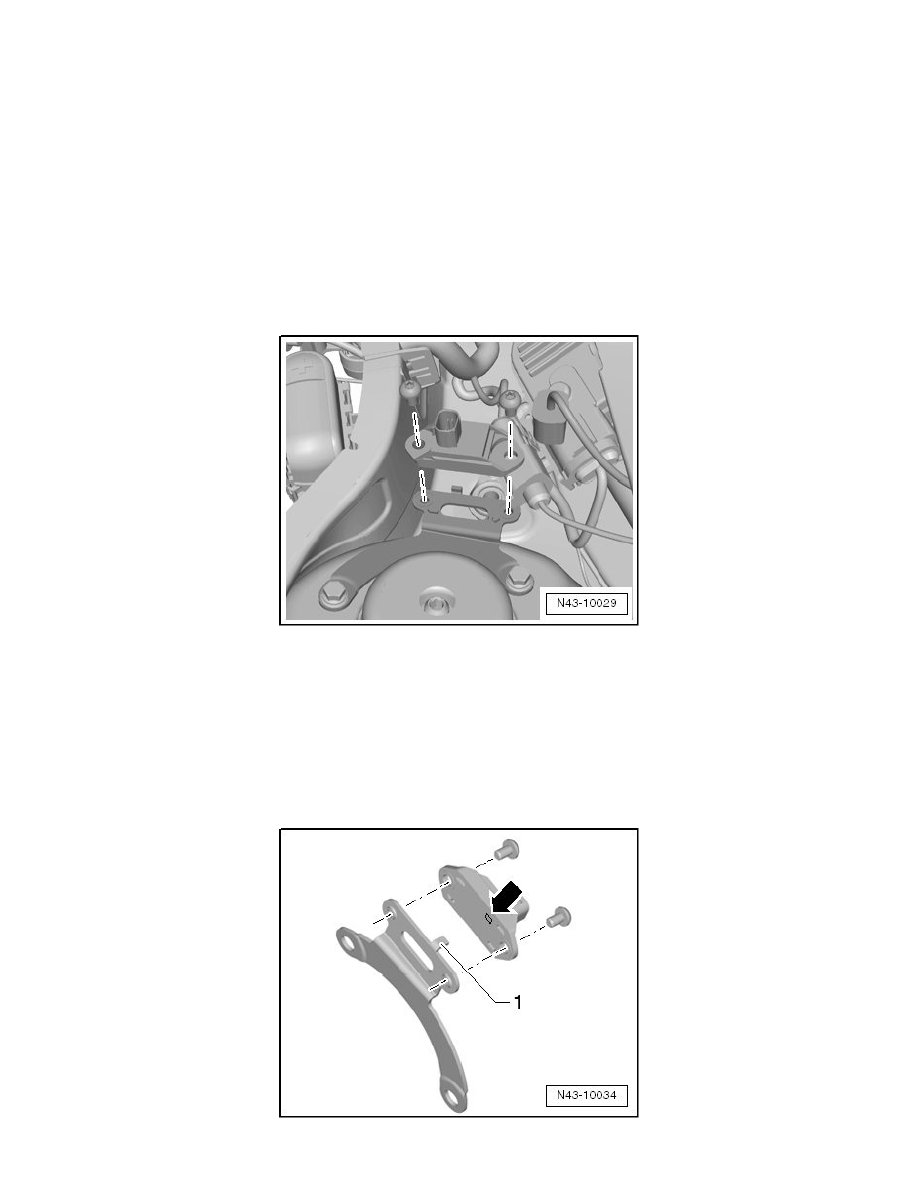

Release and disconnect the connector.

-

Remove the bolts and the front body acceleration sensor.

Installing

Installation is performed in the reverse order of removal. Observe the following when doing so:

CAUTION!
The front body acceleration sensors must never be interchanged with the rear body acceleration sensors.

-

Be sure to pay attention to the installation position of the left front body acceleration sensor (G341) retainer.
