Eurovan V6-2.8L (AXK) (2001)
Transmission Position Switch/Sensor: Service and Repair

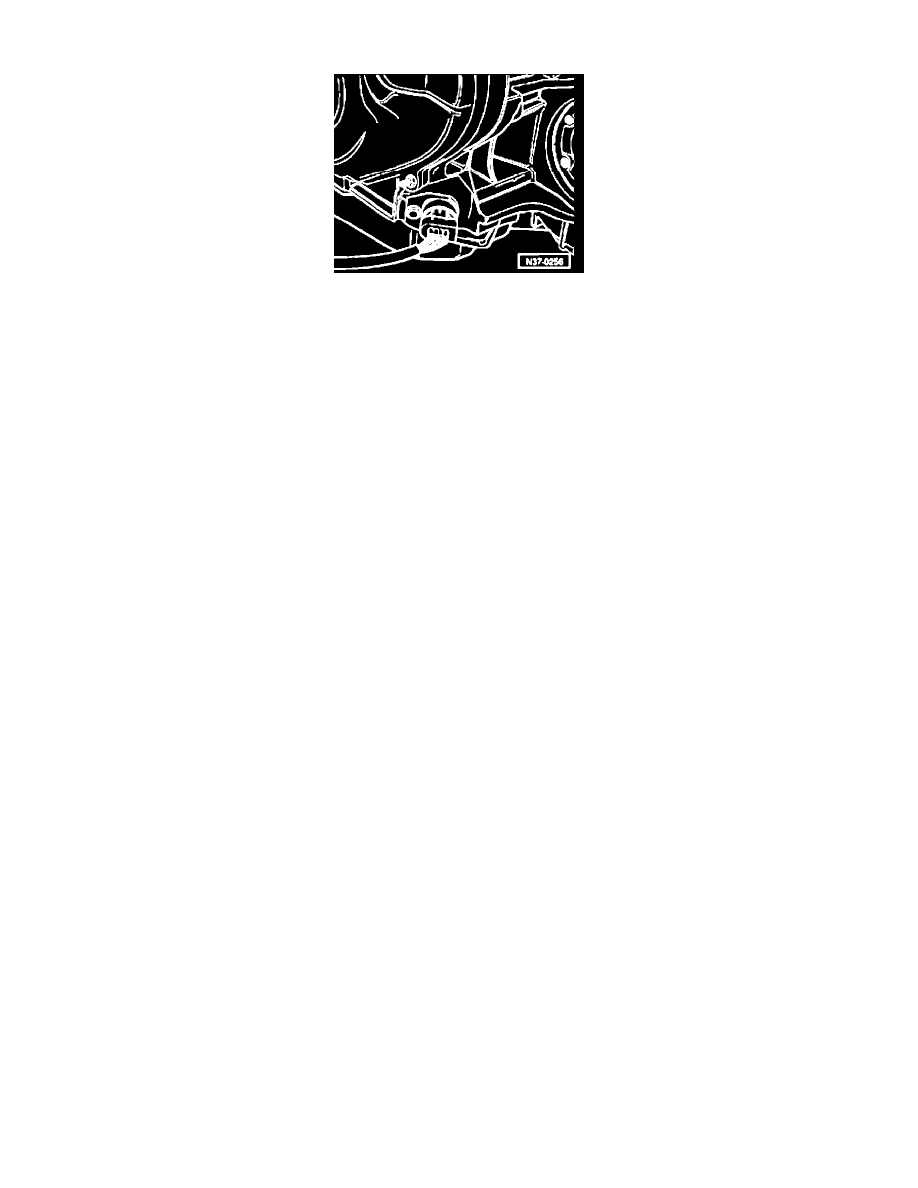

Fig. 13 Multi-Function transmission range (TR) switch -F125-
Location: The multi-function switch is located on transmission lower section.
Removing and installing multi-function switch
^
Pull connector off multi-function switch.
^
Remove bolt and retainer.
^
Place drip tray under the transmission.
^
Remove multi-function switch.
^
Always replace O-ring.
Installation is performed in the reverse order.
^
Tighten bolt to: 10 Nm.
^
Check ATF level and top off.
