Eurovan V6-2.8L (AXK) (2001)

Page 1
background image

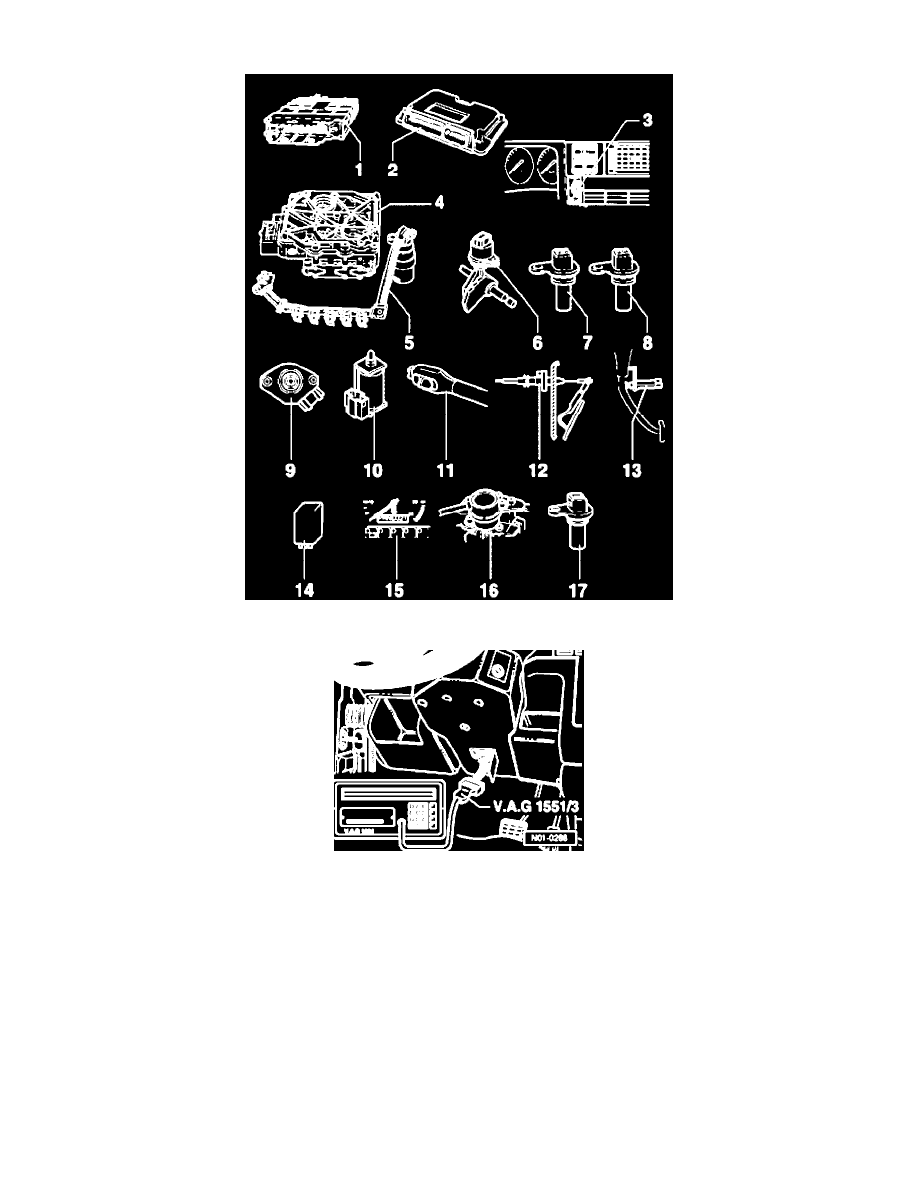

Data Link Connector, A/T: Locations

3. Data Link Connector (DLC)

Fig. 9 Data Link Connector (DLC) on vehicles from 09.98
Location: The Data Link Connector (DLC) can be found behind the cover in the lower steering column trim.
