Eurovan V6-2.8L (AXK) (2001)

Page 1
background image

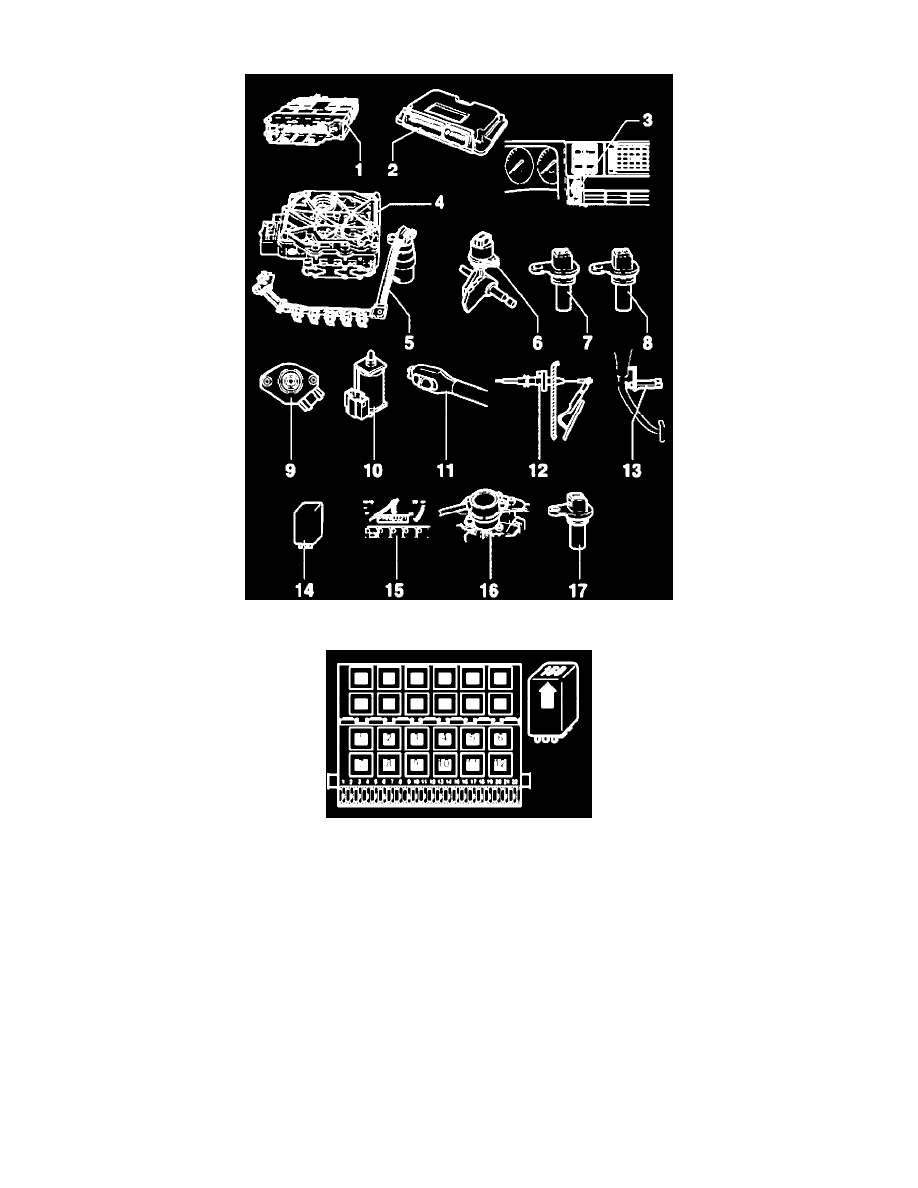

Transmission Position Relay: Locations

14. Park/Neutral Position (PNP) Relay -226

Fig.22 Park/Neutral Position (PNP) Relay -J226-

Location: Relay located on additional relay carrier behind instrument panel, center.

The relay can be marked with number "150" or "175" (arrow)
