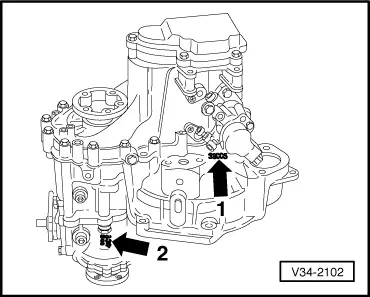

Gearbox identification
Code letters, assembly allocation, ratios, capacities
|
|
|---|
|
Manual gearbox
|
5 speed 02C four wheel drive
|
|
Code letters
|
CGM
|
CSR
|
CTT
|
|
Manufactured
|
from
to
|
01.93
|
11.93
|
10.94
|
|
Allocation
|
Type
|
Golf syncro ▸
|
Golf syncro ▸
|
Golf Variant syncro ▸
|
|
|
Engine
|
1.8 ltr. - 66 kW
2.0 ltr. - 85 kW
|
2.9 ltr. - 140 kW
|
1.9 ltr. - 66 kW
Turbo Diesel
|
|
Ratio: Z2 : Z1
|
Final drive
|
72 : 17 = 4.235
|
61 : 18 = 3.389
|
61 : 18 = 3.389
|
|
|
1st gear
|
34 : 09 = 3.778
|
29 : 08 = 3.625
|
34 : 09 = 3.778
|
|
|
2nd gear
|
36 : 17 = 2.118
|
29 : 14 = 2.071
|
36 : 17 = 2.118
|
|
|
3rd gear
|
34 : 25 = 1.360
|
28 : 19 = 1.474
|
34 : 25 = 1.360
|
|
|
4th gear
|
29 : 30 = 0.976
|
27 : 26 = 1.038
|
33 : 36 = 0.917
|
|
|
5th gear
|
30 : 39 = 0.769
|
27 : 32 = 0.844
|
33 : 46 = 0.717
|
|
|
6th gear
|
-
|
-
|
-
|
|
|
Reverse gear
|
18 : 9 x 36 : 20 = 3.600
|
15 : 8 x 36 : 20 = 3.375
|
18 : 9 x 36 : 20 = 3.600
|
|
|
Speedometer drive
|
13 : 22 = 0.591
|
13 : 22 = 0.591
|
13 : 22 = 0.591
|
|
Code letters
|
CGM
|
CSR
|
CTT
|
|
Capacity
|
2.4 ltr.
|
|
Specification
|
Gear oil G50 SAE 75W90 (synthetic oil)
|
|
Clutch control
|
hydraulic
|
hydraulic
|
hydraulic
|
|
Clutch plate ø
|
228 mm
|
228 mm
|
2281) mm
|
|
Drive shaft flange ø
|
100 mm
|
100 mm
|
100 mm
|
|
Overall ratio in top gear
|
3.257
|
2.860
|
2.430
|
|
Rear final drive allocation
Code letters
|
CBX
|
CSS
|
CBX
|
1)
Golf syncro Saloon with twin-mass flywheel: 219 mm
|
|
|---|
|
Manual gearbox
|
5 speed 02C four wheel drive
|
|
Code letters
|
DDP
|
|
|
|
Manufactured
|
from
to
|
07.96
|
|
|
|
Allocation
|
Type
|
Golf syncro
|
|
|
|
|
Engine
|
1.8 ltr. - 66 kW
2.0 ltr. - 85 kW
|
|
|
|
Ratio: Z2 : Z1
|
Final drive
|
71 : 18 = 3.944
|
|
|
|
|
1st gear
|
34 : 09 = 3.778
|
|
|
|
|
2nd gear
|
36 : 17 = 2.118
|
|
|
|
|
3rd gear
|
34 : 25 = 1.360
|
|
|
|
|
4th gear
|
30 : 29 = 1.034
|
|
|
|
|
5th gear
|
31 : 37 = 0.838
|
|
|
|
|
6th gear
|
-
|
|
|
|
|
Reverse
|
18 : 9 x 36 : 20 = 3.600
|
|
|
|
|
Speedometer drive
|
13 : 22 = 0.591
|
|
|
|
Code letters
|
DDP
|
|
|
|
Capacity
|
2.4 ltr.
|
|
|
|
Specification
|
Gear oil G50
SAE 75W90
(synthetic oil)
|
|
|
|
Clutch control
|
hydraulic
|
|
|
|
Clutch plate ø
|
228 mm
|
|
|
|
Drive shaft flange ø
|
100 mm
|
|
|
|
Overall ratio in top gear
|
3.305
|
|
|
|
Rear final drive allocation
Code letters
|
CBX
|
|
|
|
