Golf Mk4

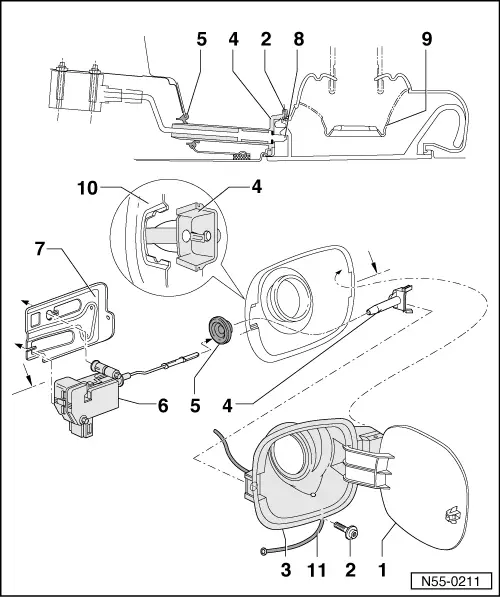

| Removing and installing tank flap unit (Bora) |
| 1 - | Tank flap unit |
| q | Removing: |
| – | Unscrew tank cap. |
| – | Press back lock release rod by operating remote release. |
| – | Remove cross-head screw → Item. |
| – | Pull rubber part off fuel tank filler and swing tank flap unit out of side panel. |
| q | Installing: |
| Assembly bracket and positioner element installed. |
| – | Install tank flap unit (rubber part rolled up) with hinge side leading. |
| – | Secure tank flap unit and assembly part. |
| 2 - | Cross-head screw |
| 3 - | Tank flap cup |
| q | Removing and installing (can only be removed as part of tank flap unit) |
| q | Press out securing pin in tank flap unit to remove the tank flap |
| 4 - | Assembly piece |
| q | Pushed into side panel |
| 5 - | Seal |
| 6 - | Tank flap positioner element |
| 7 - | Securing bracket |
| 8 - | Release rod |
| 9 - | Rubber part |
| q | Roll up to install |
| 10 - | Side panel |
