Golf Mk4

Removing release lever
Removing release lever

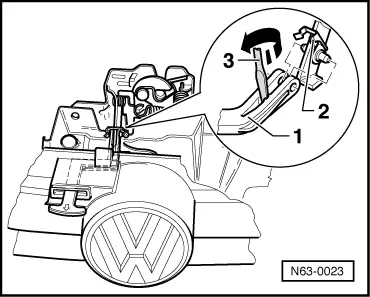

–  Swing securing clip -2- upwards.
–  Open release lever -1- using a screwdriver -3- and pull off bonnet lock.
–  Pull release lever -1- with guide out from lock carrier.
  N63-0023
